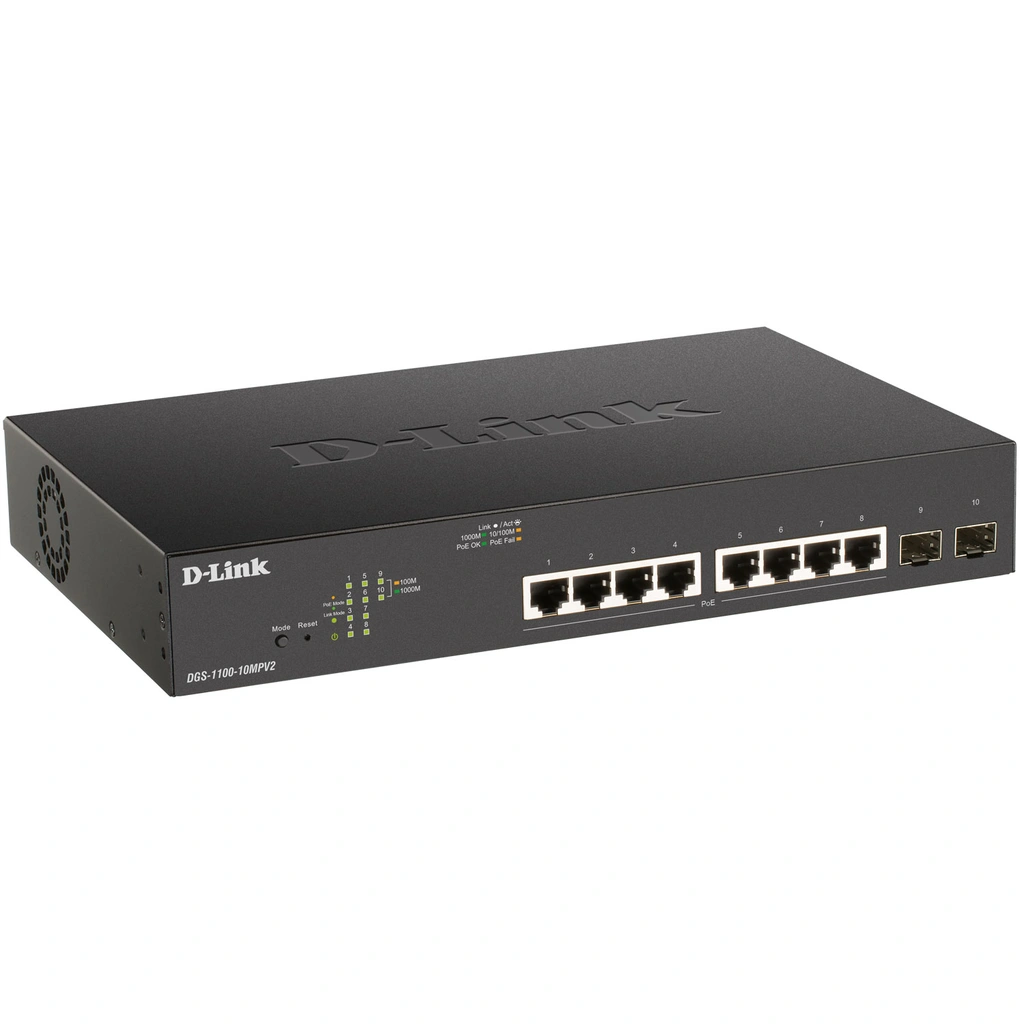

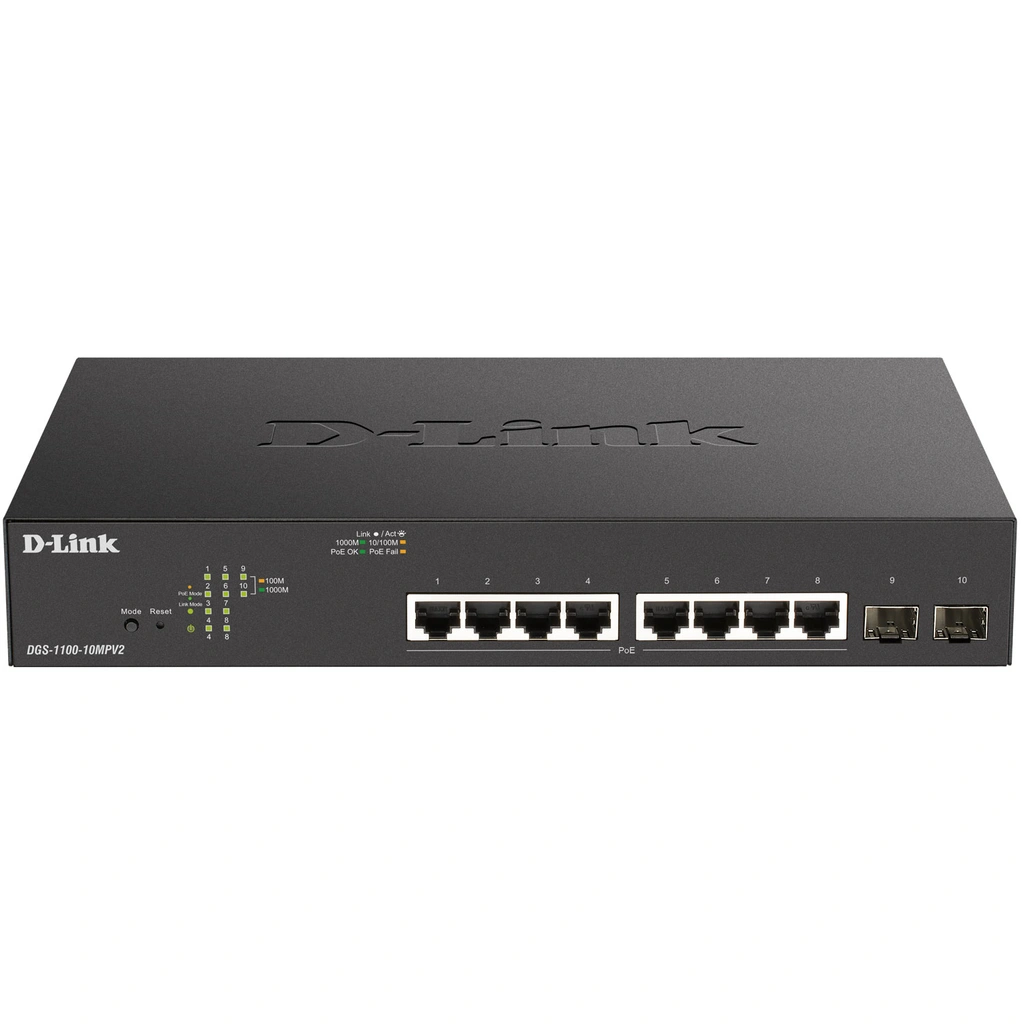

D-Link DGS-1100-10MPV2
DGS-1100 Series - Gigabit Smart Managed Switches
• 8 x 1000Base-T 802.3af/802.3at PoE
• 2 x SFP
• 130W PoE budget
• Simple Layer 2 Management
• Web-based User Interface
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100) provides hardware-based, centralised network management.
PoE
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Specifications
General
Size: 11-inch desktop (rack mount included), 1U height
Number of Ports: 8 x 10/100/1000 Mbps (PoE), 2 x 100/1000 Mbps SFP
Port Functions: IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3af/at/bt, IEEE 802.3az compliant, Auto-negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control supports full-duplex mode, Supports half/full-duplex operation (full/half at 10/100
Mbps, full at 1000 Mbps)
Performance
Switching Capacity: 20 Gbps
Maximum Forwarding Rate: 14,88 Mpps
MAC Address Table Size: 8K entries
Packet Buffer: 4,1 Mbits
Flash Memory: 16 Mbytes
PoE
PoE Standard: IEEE 802.3af/802.3at
PoE Capable Ports: Ports 1 to 8
PoE Power Budget: 130W
Power Consumption
Standby Mode: 5.6 W
Maximum Power Consumption: 164.6 W (PoE on), 11.7 W (PoE off )
Physical

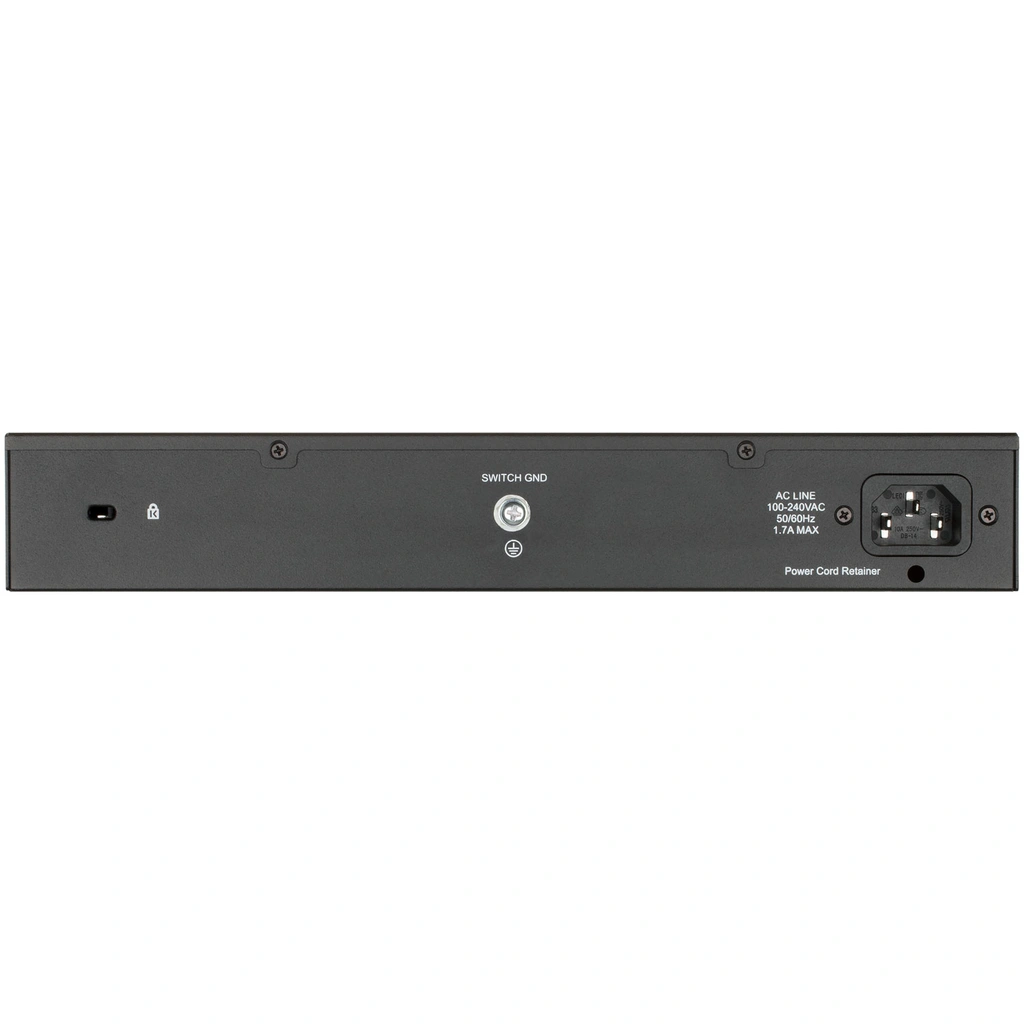

Power Input: 100 to 240 V AC, 50 to 60 Hz external power adapter
MTBF: 406,887 hours
Acoustics: 37 dB(A) (high speed), 36.2 dB(A) (low speed)
Heat Dissipation: 118.1 BTU/hr
Weight: 1,5 kg
Dimensions: 280 x 180 x 44mm
Ventilation: Smart Fan
Operating Temperature: -10 to 50 °C (14 to 122 °F)
Storage Temperature: -40 to 70 °C (-40 to 158 °F)
Operating Humidity: 0% to 95% RH, non-condensing
Storage Humidity: 0% to 95% RH, non-condensing
EMI: FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety: cUL, UL, LVD, CB, BSMI
Product document
