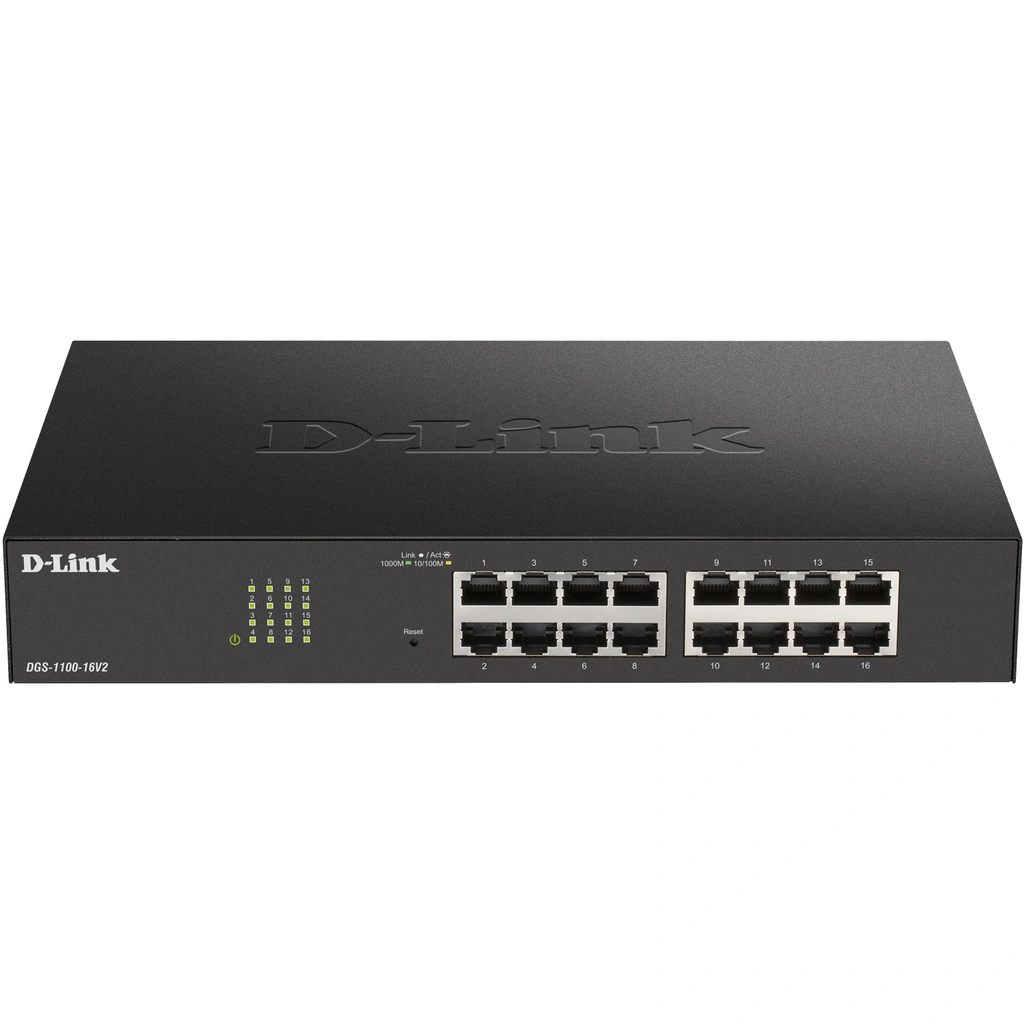

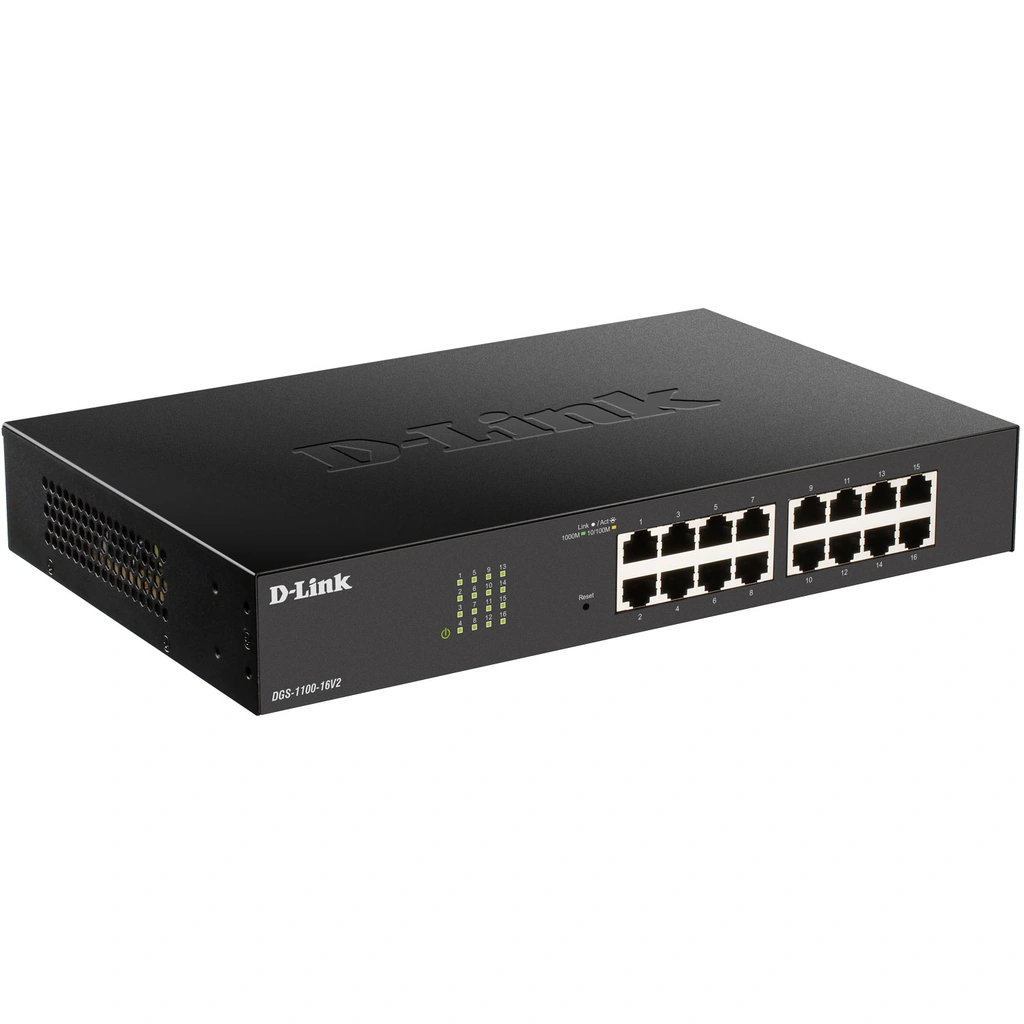

D-Link DGS-1100-16V2
DGS-1100 Series - Smart Manageable Gigabit Switches
• 16 x 1000Base-T
• Fanless
• Easy level 2 administration
• Web-based user interface
Web interface
Easy-to-use web interface for accessing management features
VLANS
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it will discover D-Link and third-party devices for easy management
Energy-efficient design
Automatic power saving features for reduced power consumption
Uncomplicated. Simple. Smart.
DGS-1100 Series smart switches are an affordable solution for environments that require simple network management.
Smart web interface
With the DGS-1100's web interface, you can easily manage L2 functions, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). Powerful security features such as IGMP snooping, Static MAC and Storm Control make the DGS-1100 series a versatile solution for environments that require easy deployment and hassle-free configuration.
Free Nuclias Connect software for remote network management
Download our free Nuclias Connect network management software designed for network integrity, control and cost-effective scaling. It can be used as an on-premise software management platform or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralized network management.
Easy troubleshooting
The DGS-1100 Series features loopback detection and cable diagnostics to help network administrators quickly and easily find and resolve network issues.
Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostics feature is designed for network administrators to quickly examine the quality of copper cables, identify the cable type and detect cable faults.
Green technology
D-Link Green is a feature that allows the DGS-1100 series to save energy without losses. The majority of the switches in the series feature a fanless design for quiet and energy-efficient operation. All are IEEE 802.3az compliant and feature Link Status Detection and Time-Based PoE (except for the DGS-1100-05PD and DGS-1100-08P models).
Specifications
General
Form factor: 11” desktop (rack mount kit included), 1U height
Number of ports: 16 x 10/100/1000 Mbps
Port Features: IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3z for Gigabit fiber, IEEE 802.3af/at (DGS-1100-24PV2 ports 1 to 12 only), IEEE 802.3az compliant, Auto-negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control supports full-duplex mode, Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
Performance
Switching capacity: 32 Gbps
Maximum forwarding rate: 23.81 Mpps
MAC address table size: 8K entries
Packet Buffer: 4.1 Mbits
Flash memory: 16 Mbytes
Power consumption
Standby mode: 3.4W
Maximum power consumption: 10.1 W
Physical

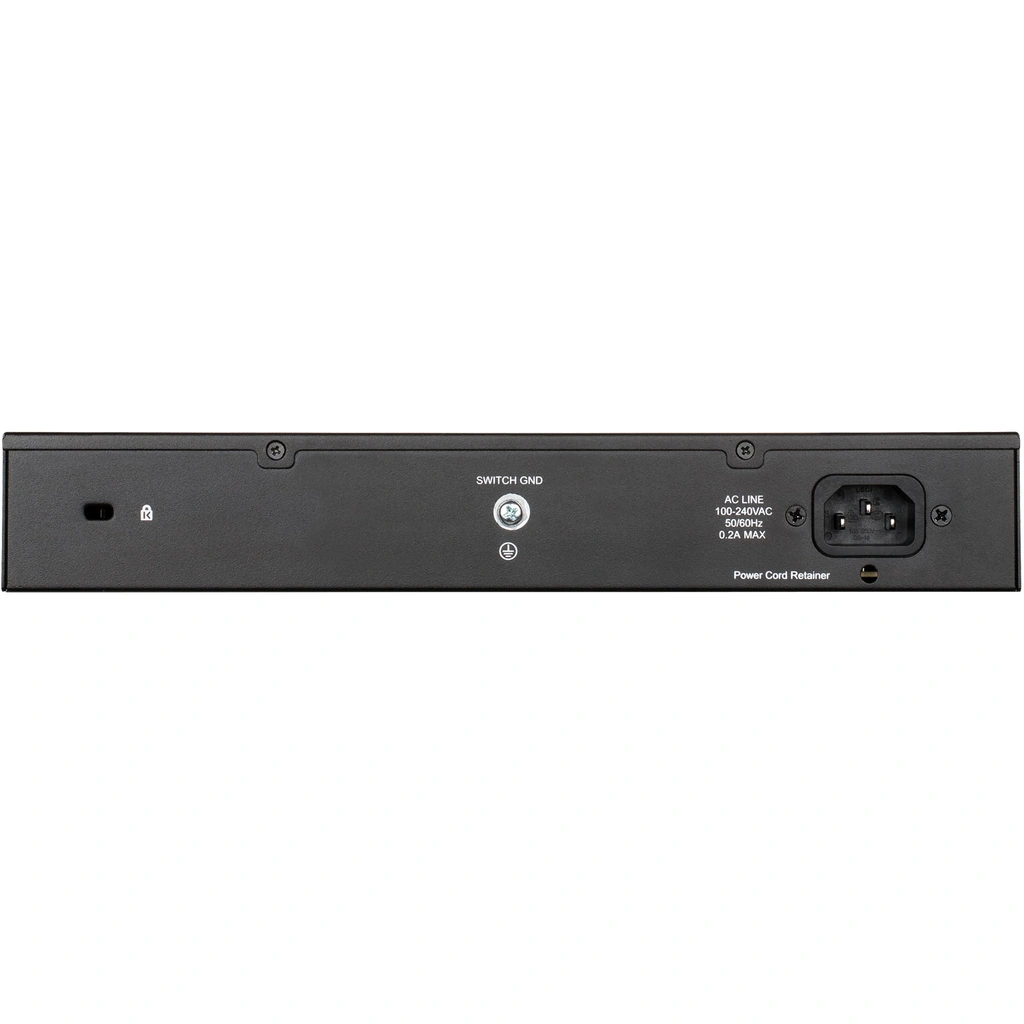

Power supply: 100 to 240 V AC, 50 to 60 Hz internal power supply
MTBF: 710,519 hours
Acoustics: 0 dB(A)
Heat dissipation: 34.46 BTU/hour
Weight: 1.21 kg
Dimensions: 280 x 180 x 44 mm
Ventilation: Fanless
Operating temperature: -5 to 50 °C
Storage temperature: -40 to 70 °C
Operating humidity: 0% to 95% RH, non-condensing
Storage humidity: 0-95% RH, non-condensing
EMI: FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC
Safety: cUL, CE LVD, CB, BSMI, CCC
Product document
