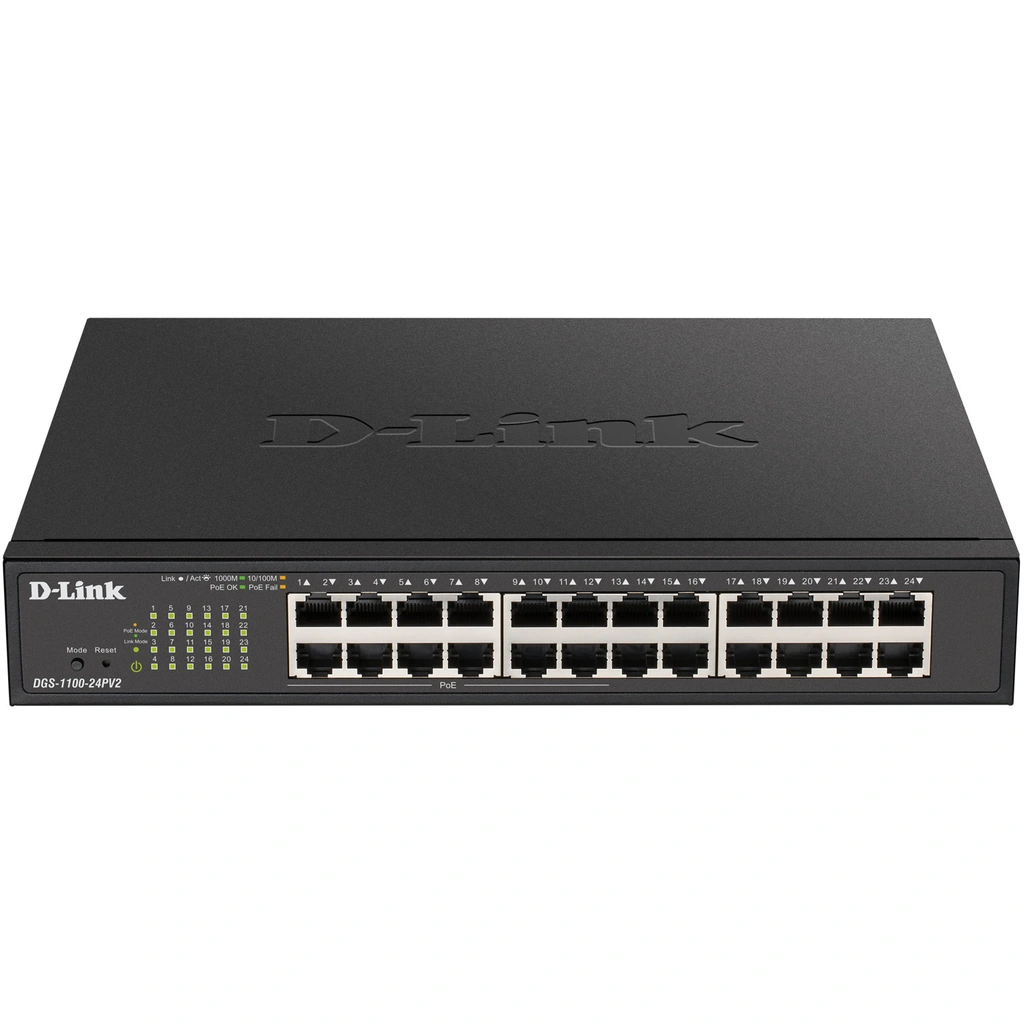

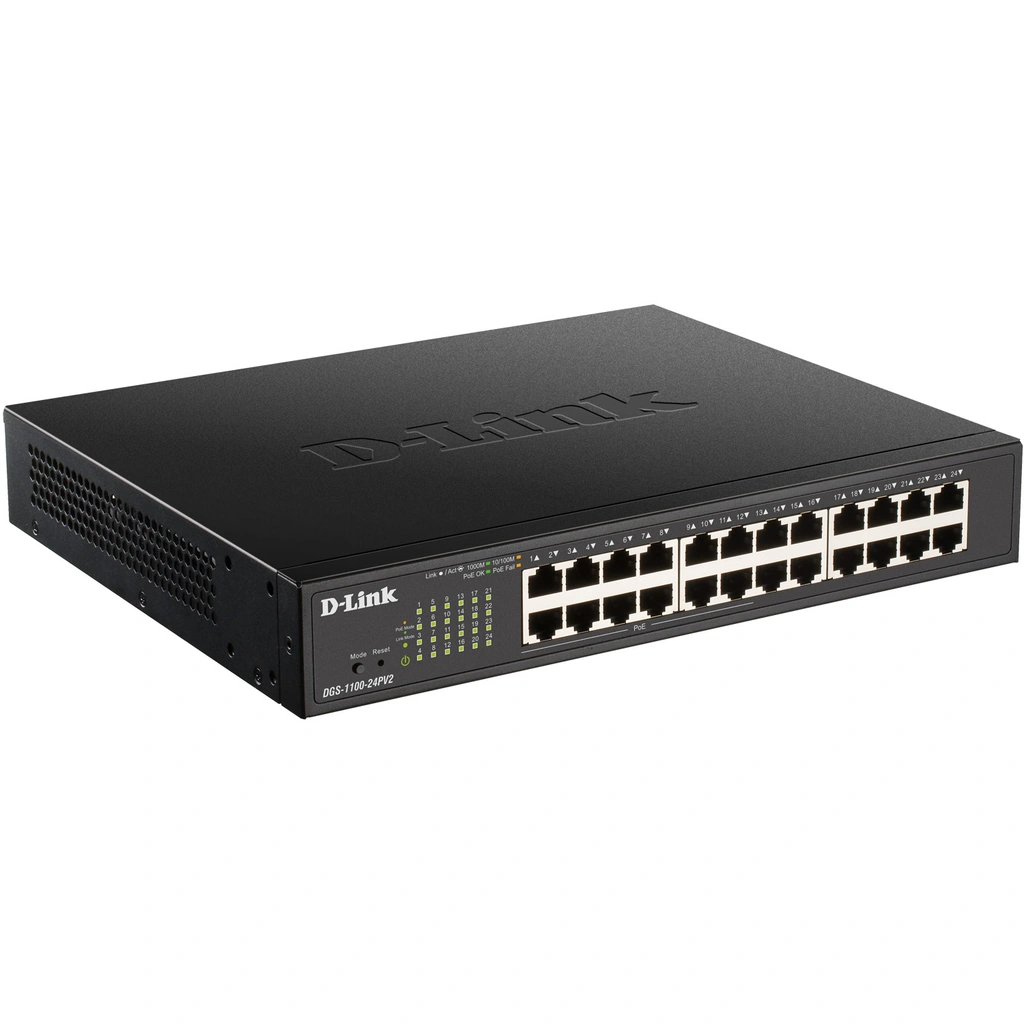

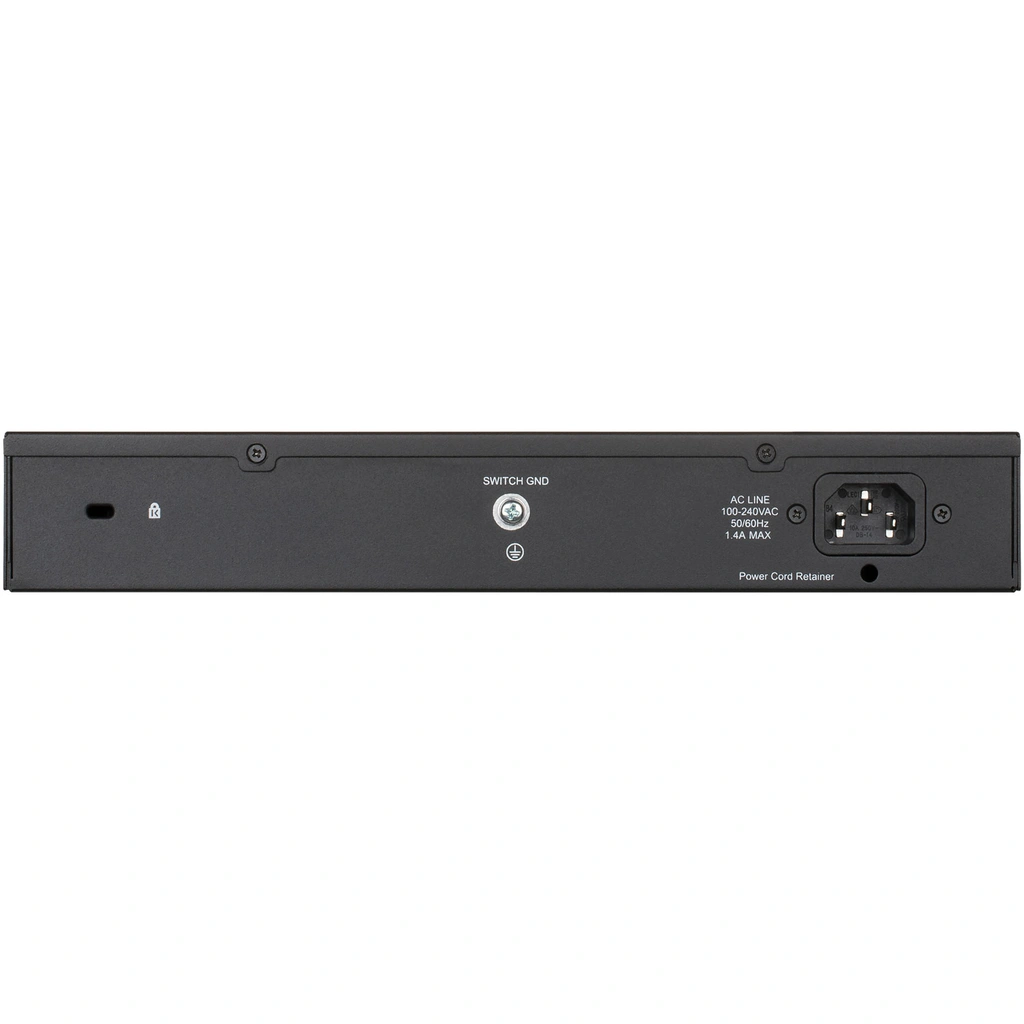

D-Link DGS-1100-24PV2/E
DGS-1100 Series - Smart Managed Gigabit Switches
• Fanless
• Simple Layer 2 management
• Web-based user interface
• Limited lifetime warranty after registration
• 12 x 1000Base-T
• 12 x 1000Base-T 802.3af/802.3at PoE
• 100 W PoE budget
Web interface
Easy-to-use web interface for accessing management features
VLAN
Segment your network into VLANs.
Easy deployment with auto-configuration
Simply connect the switch to your network and it will discover D-Link and third-party devices for easy management
Energy-efficient design
Automatic energy-saving features for reduced power consumption
Smart web interface
The DGS-1100's web interface allows you to easily manage L2 features such as VLAN, Spanning Tree Protocol (STP), and link aggregation (static). Powerful security features such as IGMP snooping, Static MAC, and Storm Control make the DGS-1100 series a versatile solution for environments that require easy deployment and hassle-free configuration.
Free Nuclias Connect software for remote network management
Download our free Nuclias Connect network management software, designed for network integrity, control, and cost-effective scaling. It can be used as a local software management platform or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralized network management.
PoE with a 100W budget
The DGS-1100 Smart Series includes a range of PoE-compatible switches with a high power budget for businesses with larger deployments of VoIP phones, wireless access points, or network cameras.
Easy troubleshooting
The DGS-1100 series features loopback detection and cable diagnostics to help network administrators quickly and easily find and resolve network problems.
Loopback detection is used to detect loops created by a specific port and automatically disable the affected port. The cable diagnostics feature is designed for network administrators to quickly examine the quality of copper cables, identify the cable type, and detect cable faults.
Green technology
D-Link Green is a feature that allows the DGS-1100 series to save energy without compromising performance. The majority of switches in the series feature a fanless design for quiet and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (except for the DGS-1100-05PD and DGS-1100-08P models).
Specifications:
Number of ports: 12 x 10/100/1000 Mbps (PoE), 12 x 10/100/1000 Mbps
Switching capacity: 48 Gbps
Maximum forwarding rate: 35.71 Mpps
MAC address table size: 8K entries
Packet buffer: 4.1 Mbits
Flash memory: 16 Mbyte
Standby mode: 8.8 W
Maximum power consumption: 131.5 W (PoE on), 19.5 W (PoE off)
Dimensions: 280 x 230 x 44 mm
Ventilation: Fanless
Product document
