D-Link

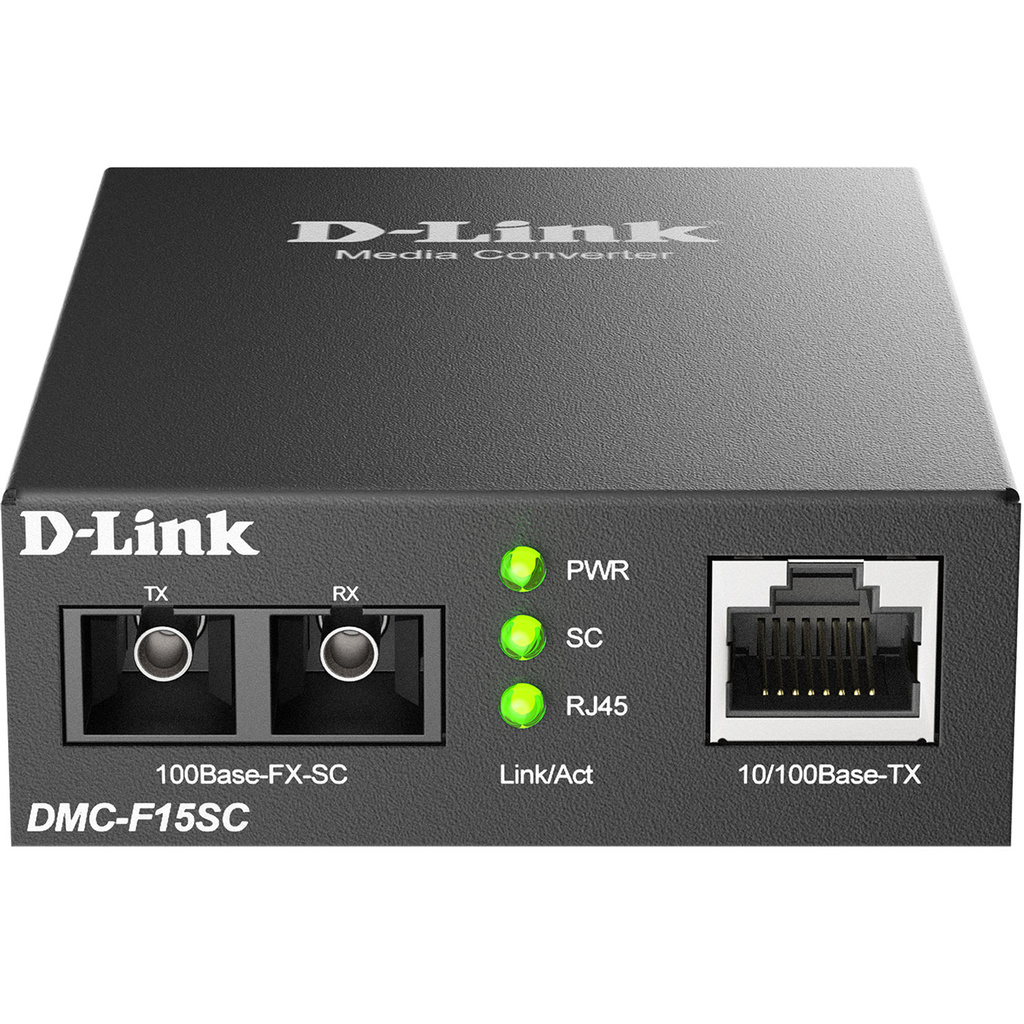

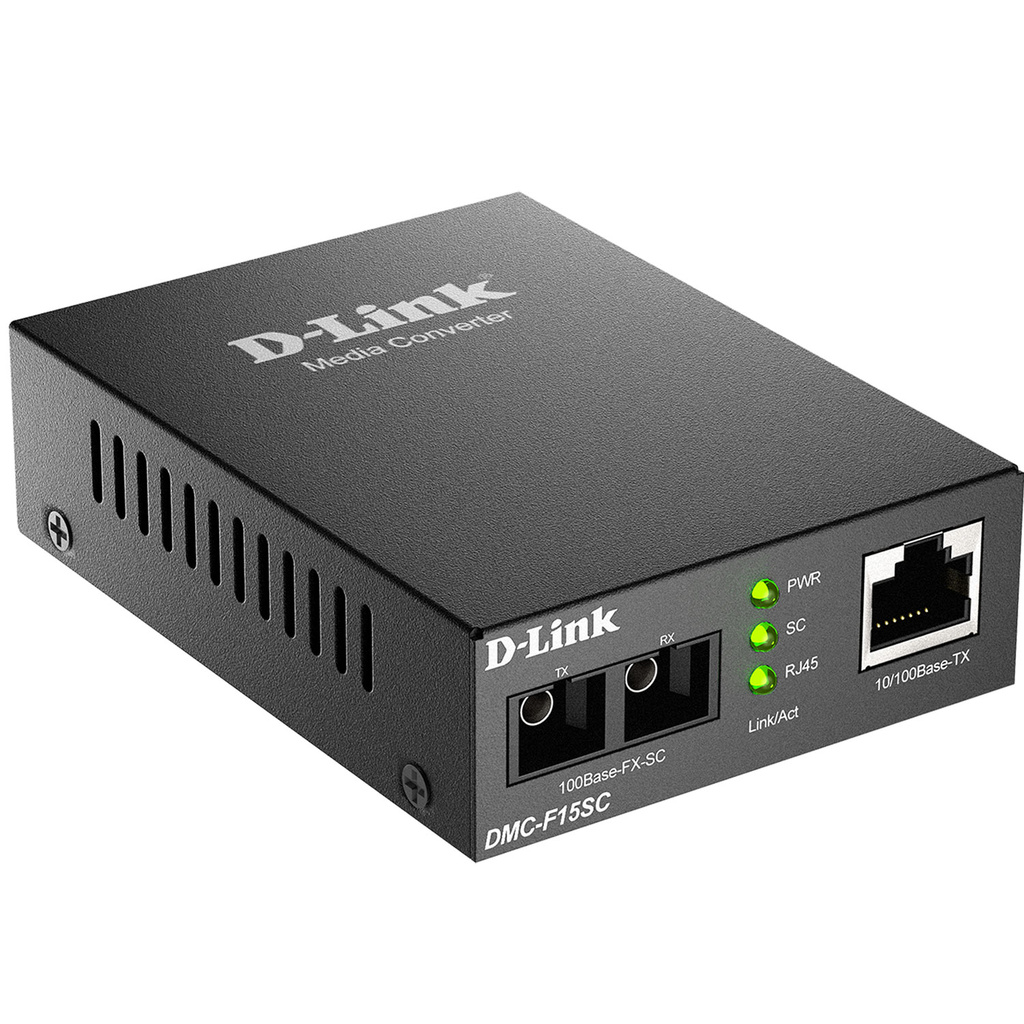

DMC-F15SC 10/100BaseTX to 100BaseFX SC Single-mode Media Converter 15km

  • Delivery time: Obs! Beställningsvara
Article no:
A14351
MPN
DMC-F15SC/E
RSP: 499,00 kr
Show all products of D-Link
  • Specification
    Package Dimensions (LxWxH)
    0.075 x 0.104 x 0.062 m
    Gross Weight
    0.235 kg
  • Description
    Article no: A14351
    MPN DMC-F15SC/E
    EAN: : 0790069470073
    For full box order: 40

    D-Link DMC-F15SC 10/100Base-TX to 100Base-FX SC Single-Mode Media Converter (15 km)

    The DMC-F15SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a single-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 15 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.


    Specifications
    Hardware
    Interfaces: 1 x 10/100Base-TX port, 1 x 100Base-FX SC port
    LEDs: PWR, Link/Act (SC), Link/Act (RJ-45)

    Certifications
    Safety: LVD
    EMI/EMC: CE Class B

    Functionality
    Standards and Functions: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, Auto MDI/MDIX adjustment for copper port

    Physical Parameters
    Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
    Weight :134 g

    Environmental Conditions

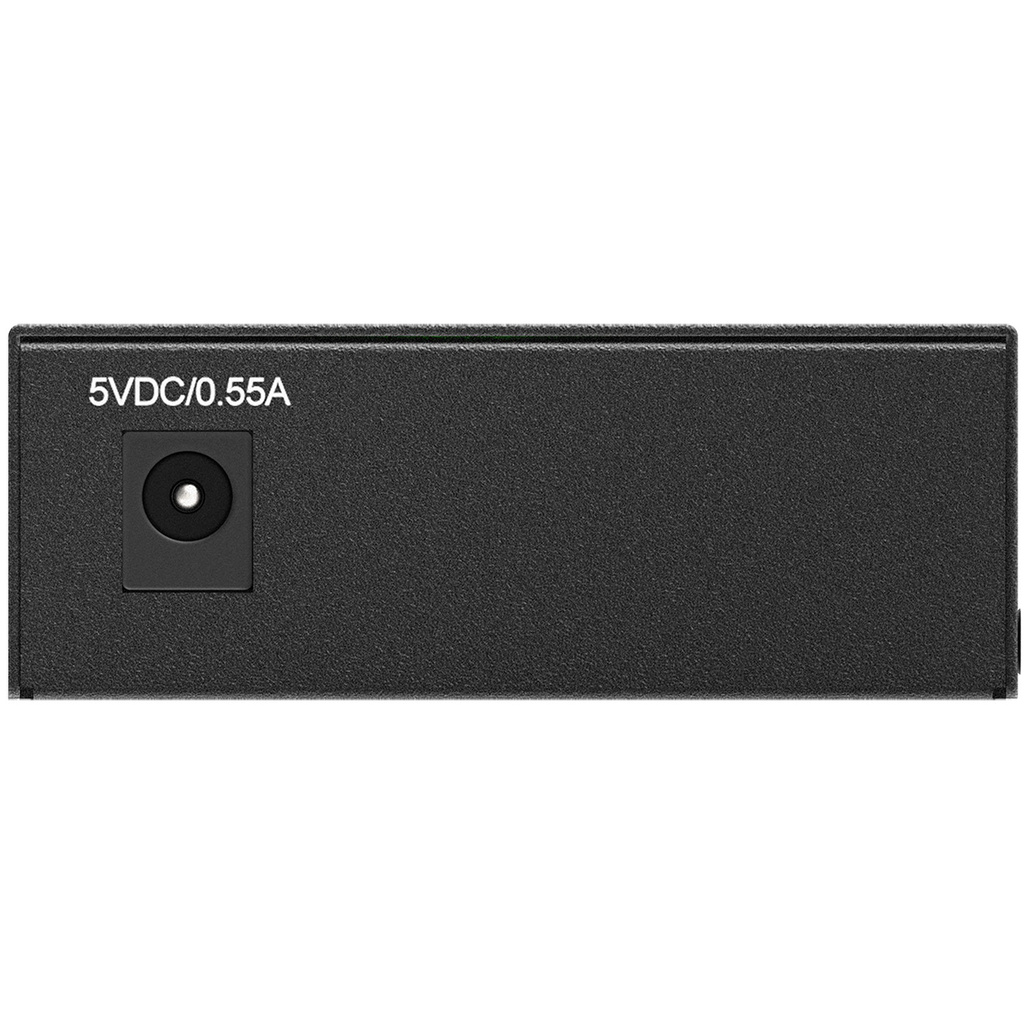

    Power Supply: 5 V DC, 0.55 A power adapter
    Max Power Consumption: 1.5 W
    Max Fiber Optic Cable Length: Up to 15 km
    Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
    Humidity: 20% to 80% non-condensing

    Product document

    D-Link DMC-F15SC 10/100Base-TX to 100Base-FX SC Single-Mode Media Converter (15 km)

    The DMC-F15SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a single-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 15 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.


    Specifications
    Hardware
    Interfaces: 1 x 10/100Base-TX port, 1 x 100Base-FX SC port
    LEDs: PWR, Link/Act (SC), Link/Act (RJ-45)

    Certifications
    Safety: LVD
    EMI/EMC: CE Class B

    Functionality
    Standards and Functions: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, Auto MDI/MDIX adjustment for copper port

    Physical Parameters
    Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
    Weight :134 g

    Environmental Conditions
    Power Supply: 5 V DC, 0.55 A power adapter
    Max Power Consumption: 1.5 W
    Max Fiber Optic Cable Length: Up to 15 km
    Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
    Humidity: 20% to 80% non-condensing

    Product document
