LogiLink

HDMI Matrix Switch 4K/60Hz ARC HDCP HDR CEC

Article no:
HD0049
MPN:
HD0049
RSP: 1 095,00 kr
Show all products of LogiLink
  • Specification
    Package Dimensions (LxWxH)
    0.06 x 0.248 x 0.198 m
    Gross Weight
    0.594 kg
  • Description
    Article no: HD0049
    MPN: HD0049
    EAN: : 4052792062472
    For full box order: 10

    4K 4x2 HDMI™ Matrix Switch, ARC, Downscaler, 4K / 60 Hz

    A high-performance 4K HDMI Matrix Switch with IR remote control that switches between four HDMI sources to two HDMI displays, whether the resolution is 4K or 1080p.
    Supports resolutions up to 4K @ 60 Hz and is HDCP 2.2-compatible. Features 4K to 1080p downscaling, ARC and audio extraction.

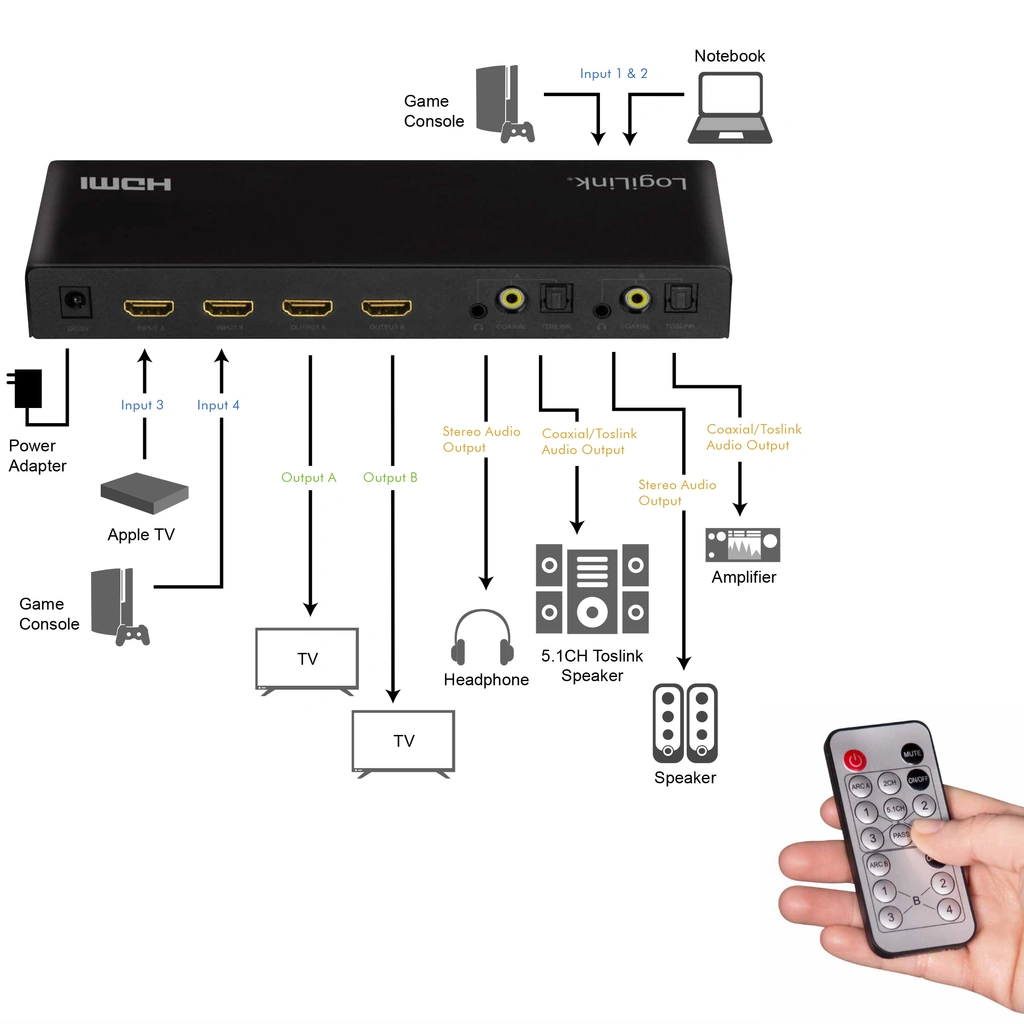

    - Connects four HDMI sources to two HDMI displays simultaneously
    - Resolution up to UHD 4K @ 60 Hz (YUV 4:4:4) and Full 3D
    - Bandwidth: 6 Gbps / 600 MHz per channel (18 Gbps in total)
    - Supports HDCP 2.2
    - Supports DDC, HDR, CEC and downscaling
    - Supports 12-bit per channel (36-bit across all channels) deep colour
    - Supports simultaneous audio output: Stereo, Toslink and Coaxial

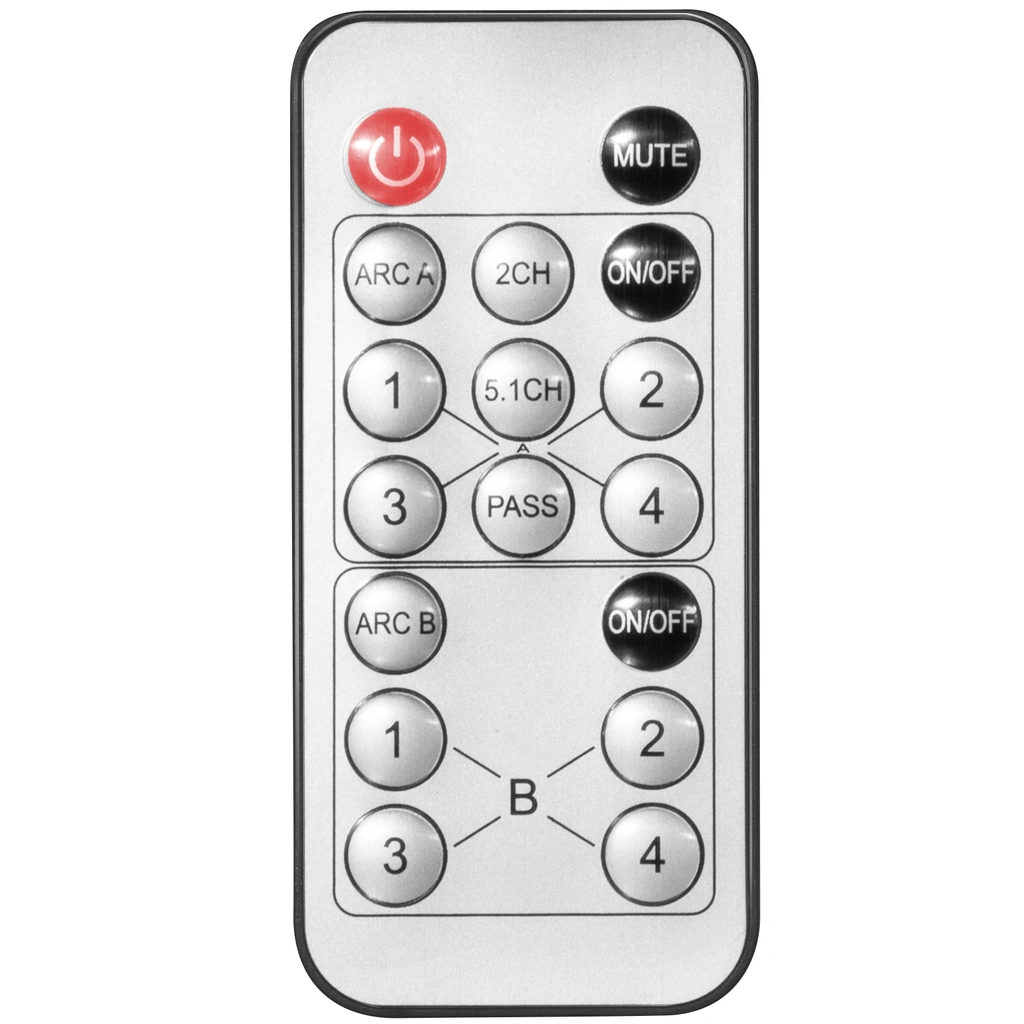

    - Audio channels can be selected via the remote control
    - Both output ports support Audio Return Channel (ARC) and the audio output function
    - Supports uncompressed audio such as LPCM
    - Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)

    ARC (Audio Return Channel)
    The unit supports ARC, and using the ARC buttons on the unit, you can control the ARC channel (on/off) fed by the connected TVs* on the output side. Ideal for reducing the number of cables behind the TV.
    *Requires ARC support on the TV.

    4K-to-1080p downscaling
    Route your 4K video sources to both 4K and 1080p screens simultaneously via downscaling.
    This allows you to display different resolutions on different screens with different maximum resolutions, even though the source resolution is the same.


    Specifications
    Inputs: 4x HDMI-A female, 1x DC socket
    Outputs: 2x HDMI-A female, 2x Coaxial, 2x SPDIF (Toslink), 2x 3.5mm phono sockets
    HDMI: Version 2.0
    HDCP: Version 2.2
    HDMI ARC: Yes
    HDMI HDR: Yes
    Video resolution (output): 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz
    Video bandwidth: 6 Gbps/600 MHz
    SPDIF: Yes
    Switch: Manual switch for selecting output
    Power consumption: 5W max.

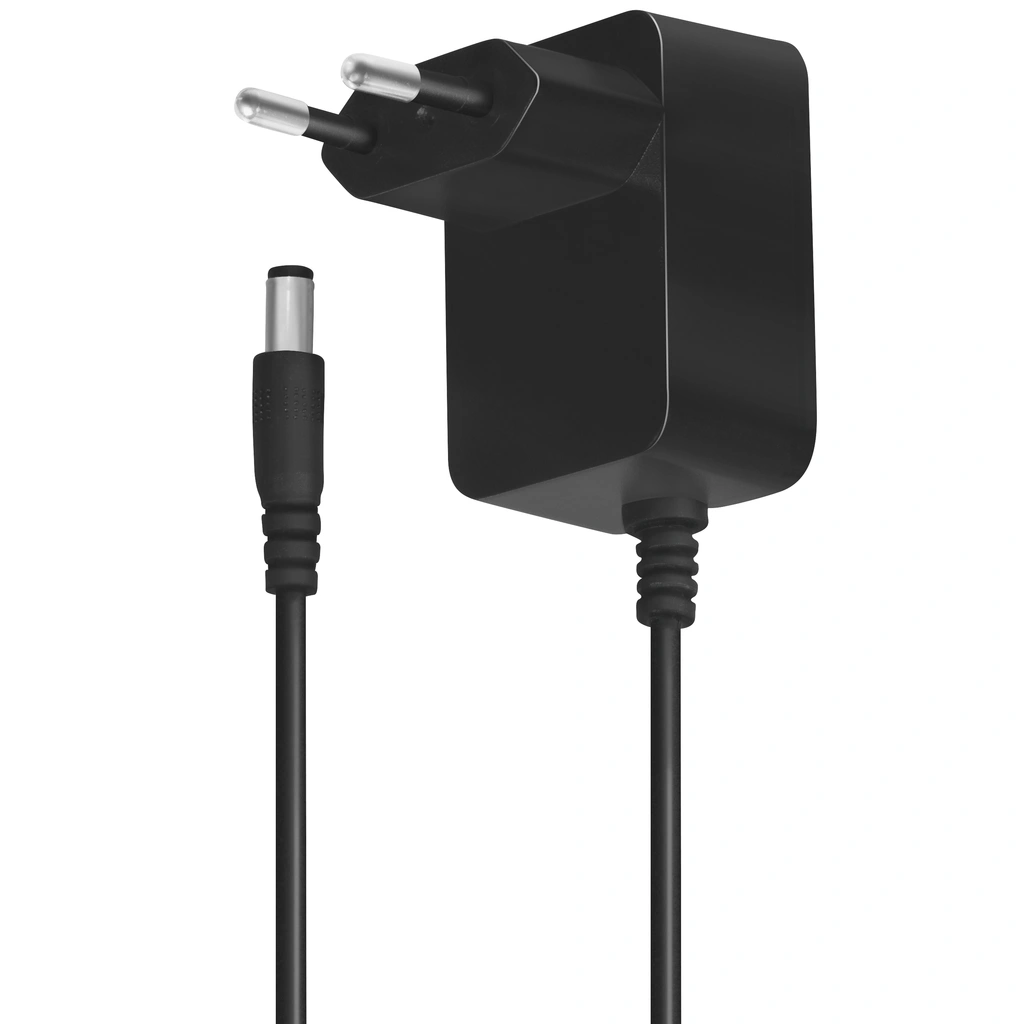

    Power supply: 5 V/2 A
    Uncompressed audio: LPCM 7.1
    Compressed audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD
    SPDIF: DTS/Dolby Digital
    Coaxial: DTS/Dolby Digital
    Dimensions: 56 x 40 x 61 mm

    Product documentation
    CE marking
    Instructions for safe use in Swedish

    4K 4x2 HDMI™ Matrix Switch, ARC, Downscaler, 4K / 60 Hz

    A high-performance 4K HDMI Matrix Switch with IR remote control that switches between four HDMI sources to two HDMI displays, whether the resolution is 4K or 1080p.
    Supports resolutions up to 4K @ 60 Hz and is HDCP 2.2-compatible. Features 4K to 1080p downscaling, ARC and audio extraction.

    - Connects four HDMI sources to two HDMI displays simultaneously
    - Resolution up to UHD 4K @ 60 Hz (YUV 4:4:4) and Full 3D
    - Bandwidth: 6 Gbps / 600 MHz per channel (18 Gbps in total)
    - Supports HDCP 2.2
    - Supports DDC, HDR, CEC and downscaling
    - Supports 12-bit per channel (36-bit across all channels) deep colour
    - Supports simultaneous audio output: Stereo, Toslink and Coaxial
    - Audio channels can be selected via the remote control
    - Both output ports support Audio Return Channel (ARC) and the audio output function
    - Supports uncompressed audio such as LPCM
    - Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)

    ARC (Audio Return Channel)
    The unit supports ARC, and using the ARC buttons on the unit, you can control the ARC channel (on/off) fed by the connected TVs* on the output side. Ideal for reducing the number of cables behind the TV.
    *Requires ARC support on the TV.

    4K-to-1080p downscaling
    Route your 4K video sources to both 4K and 1080p screens simultaneously via downscaling.
    This allows you to display different resolutions on different screens with different maximum resolutions, even though the source resolution is the same.


    Specifications
    Inputs: 4x HDMI-A female, 1x DC socket
    Outputs: 2x HDMI-A female, 2x Coaxial, 2x SPDIF (Toslink), 2x 3.5mm phono sockets
    HDMI: Version 2.0
    HDCP: Version 2.2
    HDMI ARC: Yes
    HDMI HDR: Yes
    Video resolution (output): 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz
    Video bandwidth: 6 Gbps/600 MHz
    SPDIF: Yes
    Switch: Manual switch for selecting output
    Power consumption: 5W max.
    Power supply: 5 V/2 A
    Uncompressed audio: LPCM 7.1
    Compressed audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD
    SPDIF: DTS/Dolby Digital
    Coaxial: DTS/Dolby Digital
    Dimensions: 56 x 40 x 61 mm

    Product documentation
    CE marking
    Instructions for safe use in Swedish
