LogiLink

HDMI switch 3-ports HDMI 2.0 4K/60 Hz

Article no:
A15252
MPN
HD0062
RSP: 399,00 kr
Show all products of LogiLink
  • Specification
    Package Dimensions (LxWxH)
    0.118 x 0.052 x 0.17 m
    Gross Weight
    0.278 kg
  • Description
    Article no: A15252
    MPN HD0062
    EAN: : 4052792074796
    For full box order: 40

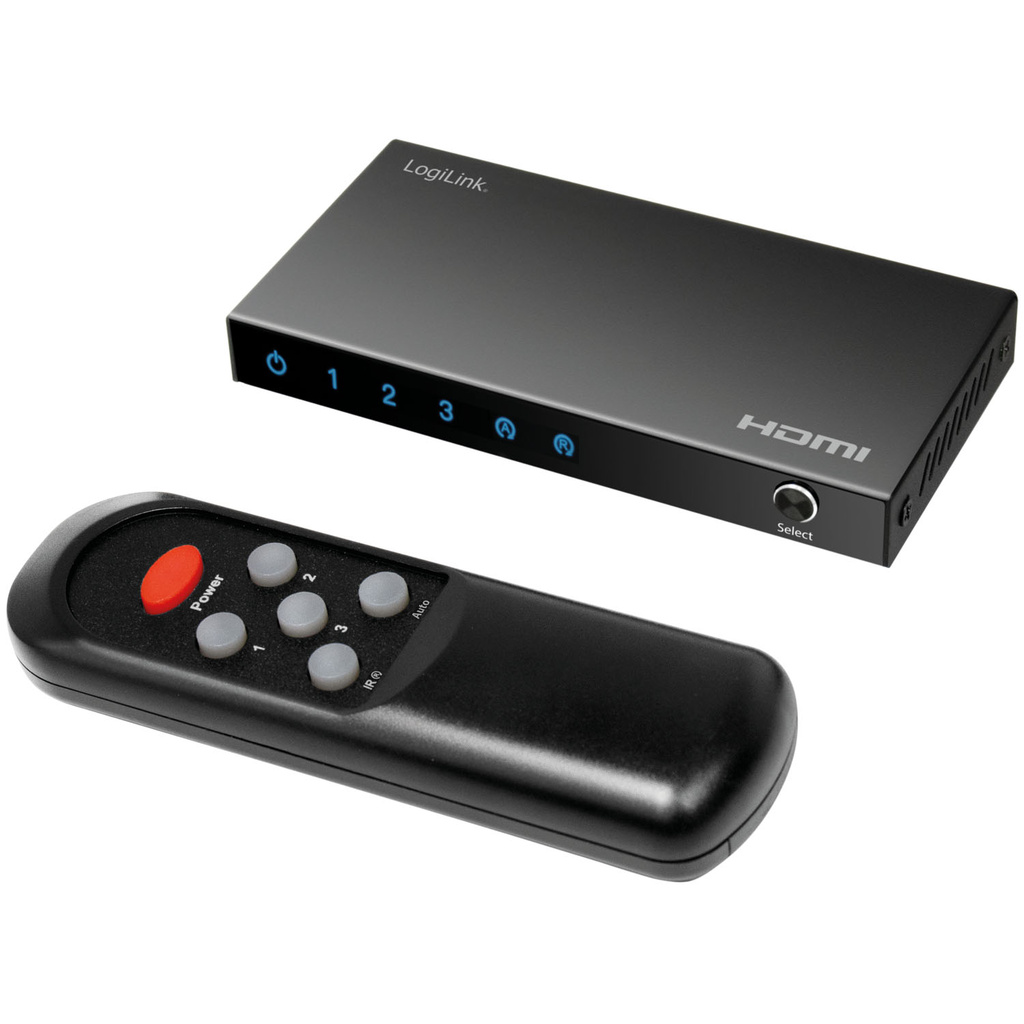

    LogiLink HDMI switch, 3x1-Port, 4K/60 Hz

    The LogiLink 4K HDMI switch allows convenient switching between three HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) via remote control, intelligent automatic detection or alternatively via switch on the switch itself. Annoying plugging of cables is a thing of the past. Thanks to Ultra HD (4K/60 Hz), you can experience media content in brilliantly sharp resolution with support for HDCP 2.2, HDR, CEC and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD also leaves nothing to be desired.

    • Allows smart switching between three HDMI signal sources on one screen
    • Compliant to HDMI 2.0 with a bandwidth of 6 Gbit/s at 600 MHz per channel (18 Gbit/s total)

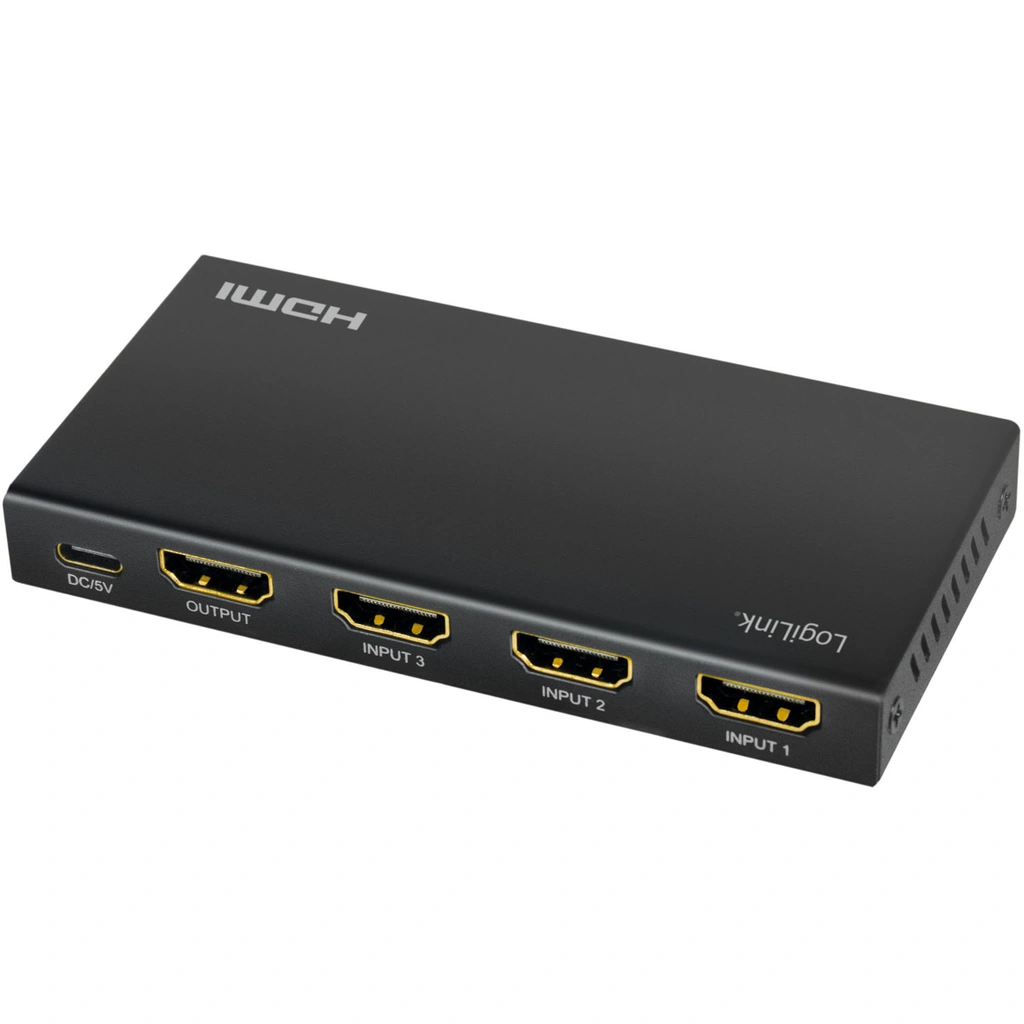

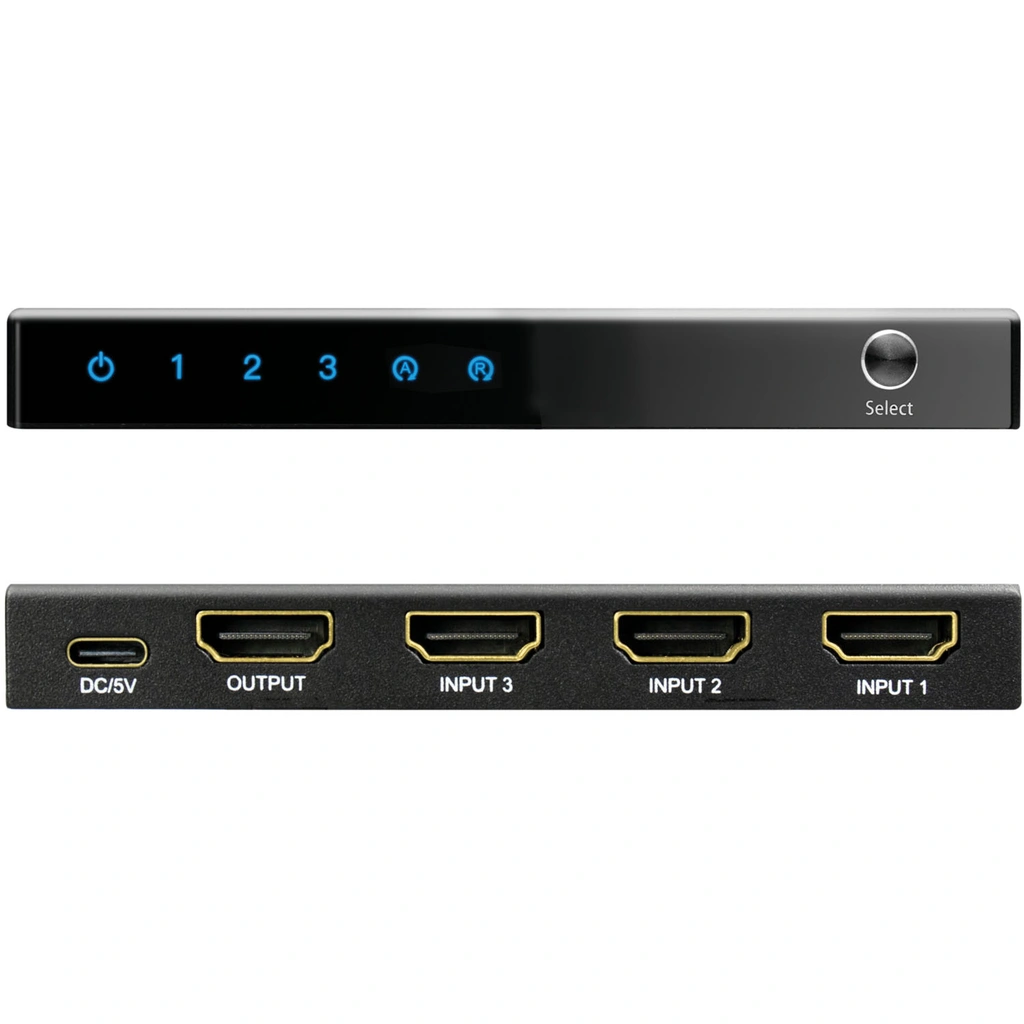

    • Connection In: 3x HDMI-A, DC Power; Connection Out: HDMI-A
    • Supports Ultra HD 4K/60 Hz (YUV 4:4:4) and Full 3D
    • Support of 36 bit Deep Color (12 bit per channel)
    • Compliant to HDCP 2.2
    • Supports DDC, HDR (HDR10, HLG, Dolby Vision, G-Sync HDR) and CEC function
    • Support uncompressed audio such as LPCM7.1
    • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)

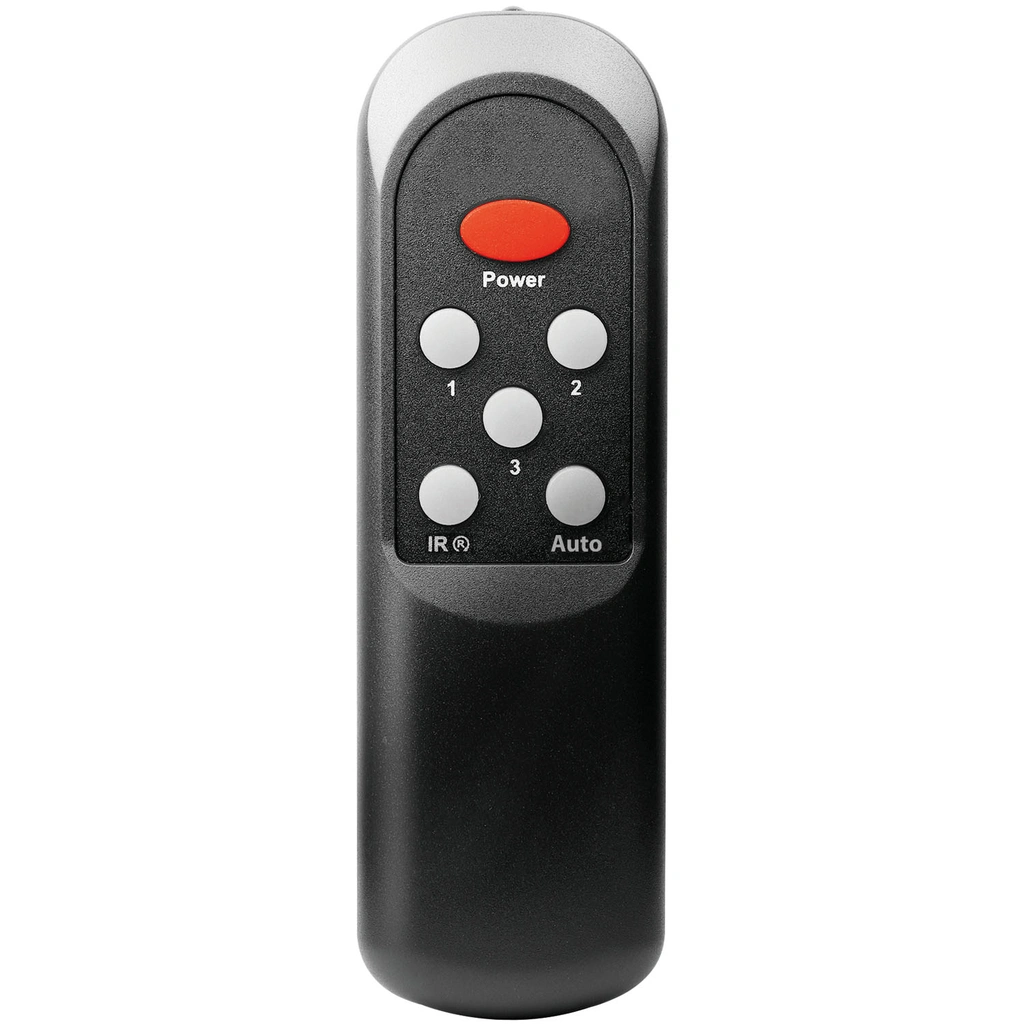

    • With IR remote control
    • Stylish black metal chassis

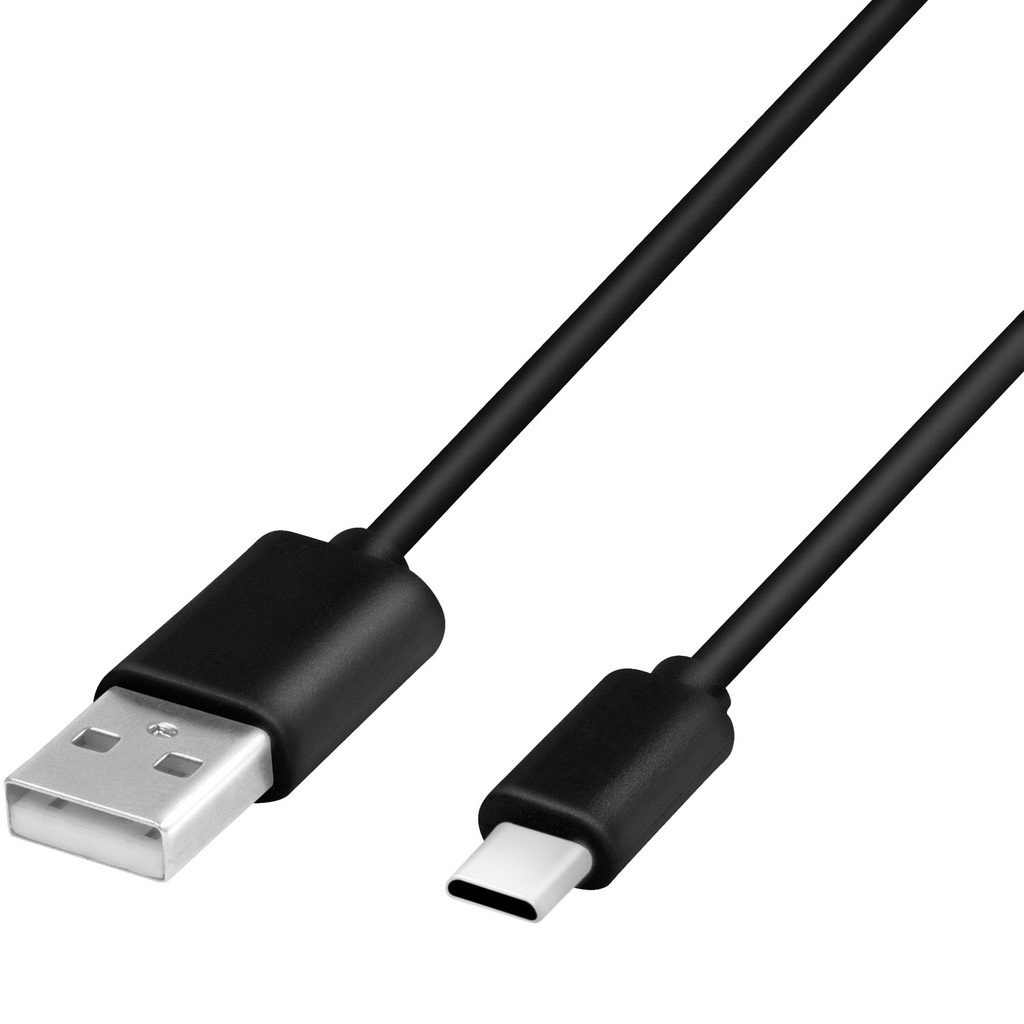

    • Inclusive USB-C power cable 5 V


    Specifications
    Input 3x HDMI-A female, 1x USB-C female
    Output 1x HDMI-A female
    HDMI Version 2.0
    HDCP Pass-through
    HDMI CEC Yes (only Input 1)
    3D Supporting Yes
    Output Resolution
    480i@60 Hz, 576i@50 Hz, 1080i@50/60 Hz, 480p@60 Hz, 576p@50 Hz,
    720p@50/60 Hz, 1080p@24/25/30/50/60 Hz, 4K@24/25/30 Hz,
    4K@50/60 Hz
    Video Bandwith Up to 18 Gbps
    Color Format Support RGB, YCbCr4:4:4, YCbCr4:2:2
    LED Indicator Yes
    Battery for Remote Control 2x AAA (not included)
    Working Distance of Remote Up to 5 m (unobstructed view)
    Power By USB-C power cable, DC 5 V
    Power Consumption 5 W max.
    Chassis Material Metal
    Uncompressed Audio LPCM 7.1
    Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD
    Operating Temperature 0–70˚C
    Operating Humidity 5–90% RH (no condensation)
    Color Black
    Dimensions 11.2 x 5.62 x 1.43 cm
    Weight 139 g

    Product document

    Instructions for safe use

    LogiLink HDMI switch, 3x1-Port, 4K/60 Hz

    The LogiLink 4K HDMI switch allows convenient switching between three HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) via remote control, intelligent automatic detection or alternatively via switch on the switch itself. Annoying plugging of cables is a thing of the past. Thanks to Ultra HD (4K/60 Hz), you can experience media content in brilliantly sharp resolution with support for HDCP 2.2, HDR, CEC and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD also leaves nothing to be desired.

    • Allows smart switching between three HDMI signal sources on one screen
    • Compliant to HDMI 2.0 with a bandwidth of 6 Gbit/s at 600 MHz per channel (18 Gbit/s total)
    • Connection In: 3x HDMI-A, DC Power; Connection Out: HDMI-A
    • Supports Ultra HD 4K/60 Hz (YUV 4:4:4) and Full 3D
    • Support of 36 bit Deep Color (12 bit per channel)
    • Compliant to HDCP 2.2
    • Supports DDC, HDR (HDR10, HLG, Dolby Vision, G-Sync HDR) and CEC function
    • Support uncompressed audio such as LPCM7.1
    • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
    • With IR remote control
    • Stylish black metal chassis
    • Inclusive USB-C power cable 5 V


    Specifications
    Input 3x HDMI-A female, 1x USB-C female
    Output 1x HDMI-A female
    HDMI Version 2.0
    HDCP Pass-through
    HDMI CEC Yes (only Input 1)
    3D Supporting Yes
    Output Resolution
    480i@60 Hz, 576i@50 Hz, 1080i@50/60 Hz, 480p@60 Hz, 576p@50 Hz,
    720p@50/60 Hz, 1080p@24/25/30/50/60 Hz, 4K@24/25/30 Hz,
    4K@50/60 Hz
    Video Bandwith Up to 18 Gbps
    Color Format Support RGB, YCbCr4:4:4, YCbCr4:2:2
    LED Indicator Yes
    Battery for Remote Control 2x AAA (not included)
    Working Distance of Remote Up to 5 m (unobstructed view)
    Power By USB-C power cable, DC 5 V
    Power Consumption 5 W max.
    Chassis Material Metal
    Uncompressed Audio LPCM 7.1
    Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD
    Operating Temperature 0–70˚C
    Operating Humidity 5–90% RH (no condensation)
    Color Black
    Dimensions 11.2 x 5.62 x 1.43 cm
    Weight 139 g

    Product document

    Instructions for safe use
