LogiLink

HDMI switch 5-ports HDMI 2.0 4K/60 Hz

Article no:
A15251
MPN
HD0060
RSP: 499,00 kr
Show all products of LogiLink
  • Specification
    Package Dimensions (LxWxH)
    0.152 x 0.062 x 0.194 m
    Gross Weight
    0.358 kg
  • Description
    Article no: A15251
    MPN HD0060
    EAN: : 4052792070804
    For full box order: 15

    LogiLink HDMI switch, 5x1-Port

    The LogiLink 4K HDMI switch allows convenient switching between five HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) via remote control, intelligent automatic detection or alternatively via switch on the switch itself. Annoying plugging and unplugging of cables is a thing of the past. Thanks to Ultra HD (4K/60 Hz), you can experience media content in brilliantly sharp resolution with support for HDCP 2.2, HDR, CEC and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD also leaves nothing to be desired.

    • Allows smart switching between five HDMI signal sources on one screen
    • Compliant to HDMI 2.0 with a bandwidth of 6 Gbps/s at 600 MHz per channel (18 Gbit/s total)
    • Connection In: 5x HDMI-A, USB micro-B; Connection Out: HDMI-A
    • Supports Ultra HD 4K/60 Hz and Full 3D

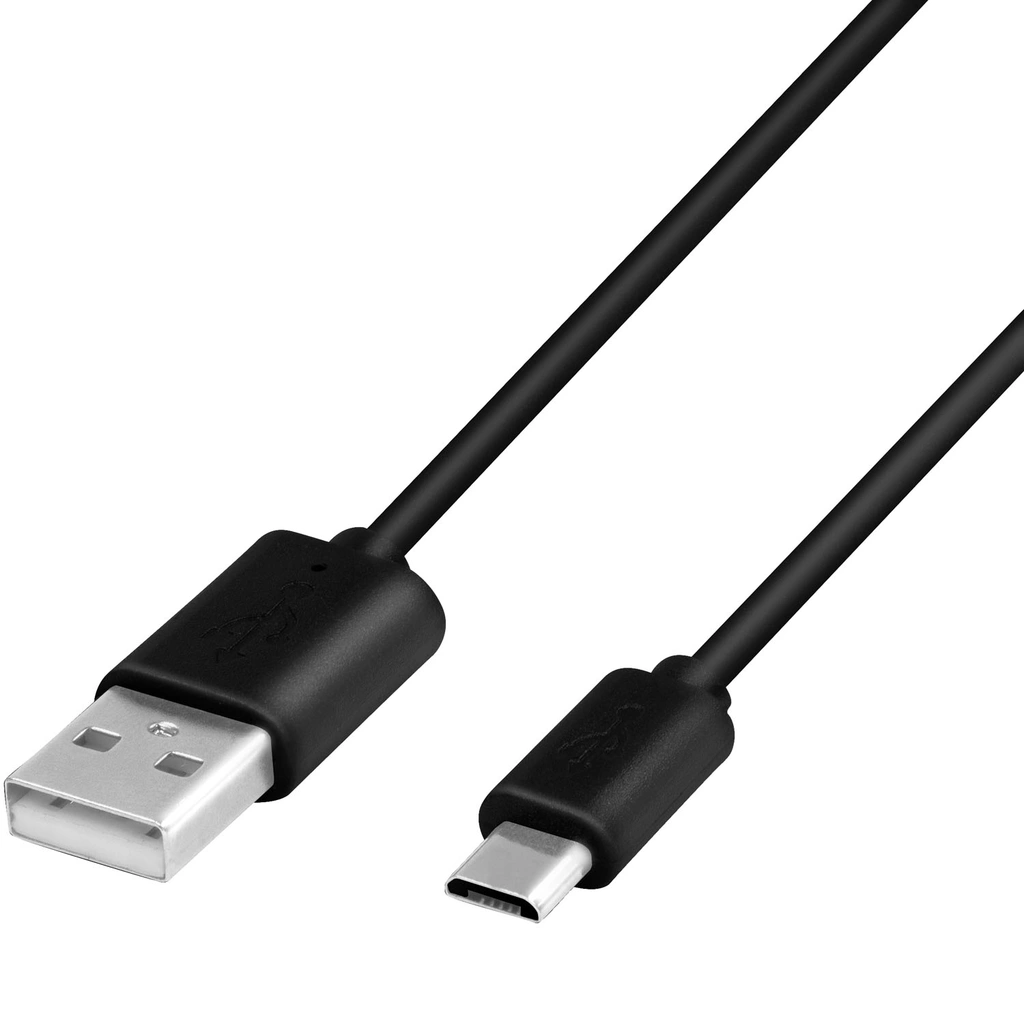

    • USB micro-B power cable 5 V/1 A
    • Support of 36 bit Deep Color (12 bit per channel)
    • Compliant to HDCP 2.2
    • Supports DDC, HDR, CEC function and IR remote support
    • Support uncompressed audio such as LPCM7.1
    • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
    • Sturdy metal chassis

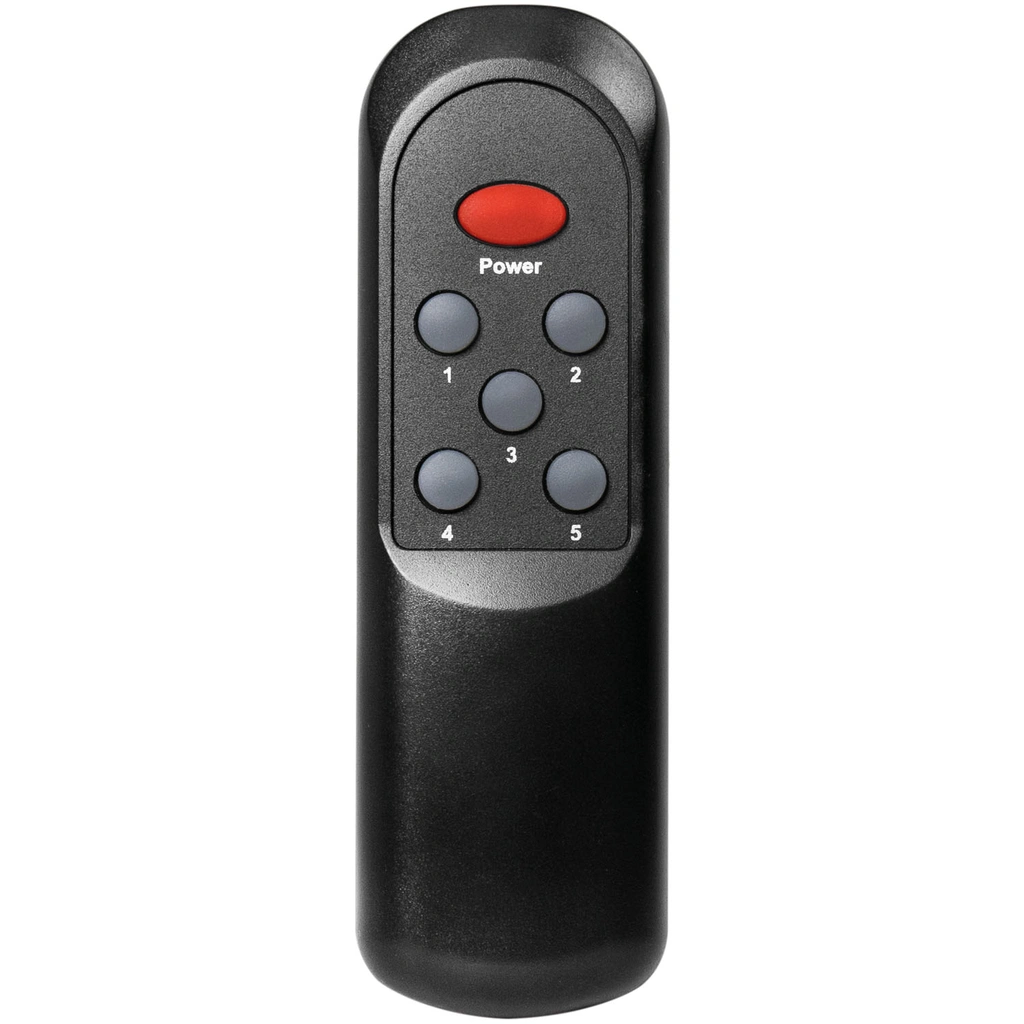

    • With IR remote control


    Specifications
    Input Ports 5x HDMI-A female, 1x Micro USB female
    Output Port 1x HDMI-A female
    HDMI Version 2.0
    HDCP Version 2.2
    HDMI CEC Yes
    HDMI HDR Yes
    Output Resolution
    480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz,
    720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz,
    4K@50/60 Hz
    Video Bandwith 6 Gbps/600 MHz
    3D Supporting Yes
    Input and Output DDC Signal Yes
    Chassis Material Metal
    LED Indication Yes
    IR Remote Support Yes (require 2x 1.5 V AAA batteries, not included in the package)
    Power By Through Micro USB cable, 5 V/1 A (5 W max.)
    Uncompressed Audio LPCM 7.1
    Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
    Operating Temperature 0–70˚C
    Operating Humidity 10–85% RH (no condensation)
    Dimensions 16 x 6.1 x 1.5 cm
    Weight 0.2 kg
    Color Black

    Product document

    EU Declaration

    Instructions for safe use

    LogiLink HDMI switch, 5x1-Port

    The LogiLink 4K HDMI switch allows convenient switching between five HDMI input sources (video camera, DVD/Blu-ray player, game console, streaming box, etc.) via remote control, intelligent automatic detection or alternatively via switch on the switch itself. Annoying plugging and unplugging of cables is a thing of the past. Thanks to Ultra HD (4K/60 Hz), you can experience media content in brilliantly sharp resolution with support for HDCP 2.2, HDR, CEC and 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD also leaves nothing to be desired.

    • Allows smart switching between five HDMI signal sources on one screen
    • Compliant to HDMI 2.0 with a bandwidth of 6 Gbps/s at 600 MHz per channel (18 Gbit/s total)
    • Connection In: 5x HDMI-A, USB micro-B; Connection Out: HDMI-A
    • Supports Ultra HD 4K/60 Hz and Full 3D
    • USB micro-B power cable 5 V/1 A
    • Support of 36 bit Deep Color (12 bit per channel)
    • Compliant to HDCP 2.2
    • Supports DDC, HDR, CEC function and IR remote support
    • Support uncompressed audio such as LPCM7.1
    • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
    • Sturdy metal chassis
    • With IR remote control


    Specifications
    Input Ports 5x HDMI-A female, 1x Micro USB female
    Output Port 1x HDMI-A female
    HDMI Version 2.0
    HDCP Version 2.2
    HDMI CEC Yes
    HDMI HDR Yes
    Output Resolution
    480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz,
    720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz,
    4K@50/60 Hz
    Video Bandwith 6 Gbps/600 MHz
    3D Supporting Yes
    Input and Output DDC Signal Yes
    Chassis Material Metal
    LED Indication Yes
    IR Remote Support Yes (require 2x 1.5 V AAA batteries, not included in the package)
    Power By Through Micro USB cable, 5 V/1 A (5 W max.)
    Uncompressed Audio LPCM 7.1
    Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
    Operating Temperature 0–70˚C
    Operating Humidity 10–85% RH (no condensation)
    Dimensions 16 x 6.1 x 1.5 cm
    Weight 0.2 kg
    Color Black

    Product document

    EU Declaration

    Instructions for safe use
