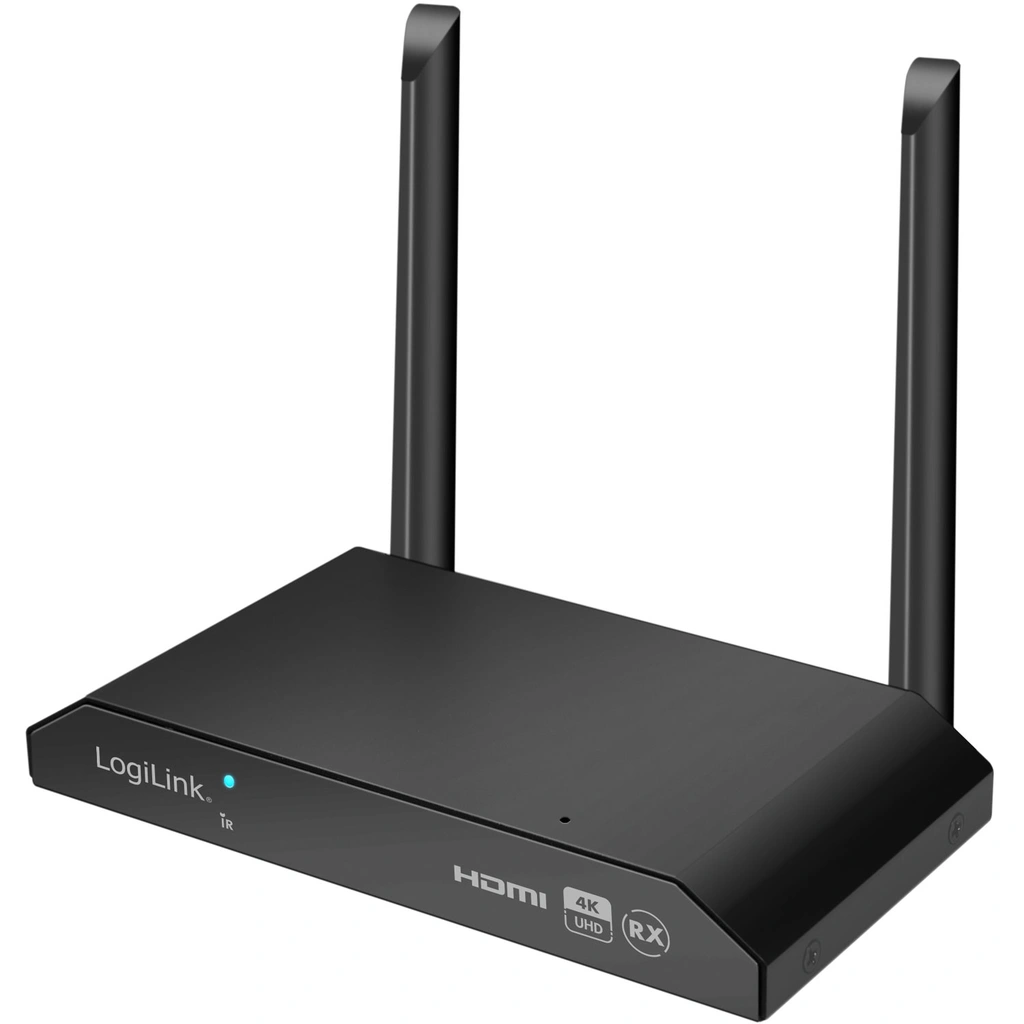

LogiLink HDW0103AR 4K Wireless Video Extender receiver unit 150 m
Seamless Connectivity, Unmatched Clarity!
Wirelessly transmits HDMI video and audio signals in UHD 4K/60 Hz over a distance of up to 150 m with an unobstructed view and offers KVM functionality
The wireless HDMI KVM transmission set from LogiLink transmits your HDMI video and audio signals in Ultra HD (4K) resolution wirelessly over a distance of up to 150 m (with unrestricted visibility). Thanks to the KVM functionality, your mouse and keyboard can be connected to the receiver unit, allowing you to control the signal source directly on the output device. The auto-pairing function promises simple installation. Support for the multicast function means that up to 4 receiver units or end devices can be connected and used simultaneously. Save yourself the trouble of laying HDMI cables and use this easy-to-use wireless HDMI extender system.
• Based on HDMI 2.0 technology and Wireless Standard 802.11ac
• Bandwidth: 6 Gbit/s/600 MHz per channel (18 Gbit/s total)
• Supports UHD A/V signal transmission up to 150 m/492 ft
• Supports video resolution of Ultra HD 4K/60 Hz (YUV 4:2:0)
• Compliant with HDCP 2.2
• Supports DDC and KVM function (Mouse / Keyboard connection)
• Support audio in PCM 2 channel stereo format
• Nearly zero latency
• Metal chassis
• Power supply unit: DC 5 V/1 A
• Plug-and-play – no driver installation needed
Point-to-Multi-Point Connections: 1 sender to 4 receivers
Screen sharing from your notebook or tablet to multiple HDMI TV/Monitors
Enhanced Viewing Experience
Ultra-high-definition (4K) picture quality ensures crystal clear images and vibrant colors.
Low Latency
Ensures smooth, lag-free video and audio transmission, which is crucial
for gaming and real-time presentations.
Ease of Setup
Plug-and-play functionality makes it easy to install and use without
extensive configuration.
Multi-Room Use
Allows streaming from one source to multiple displays in different rooms, enhancing flexibility in device placement.
KVM Functionality
For connection to mouse and keyboard.
Touch Screen Back Control
Supports touch screen panels (via USB connection on the receiver).
Compatibility
Works with a wide range of devices, including TVs, projectors, laptops, and gaming consoles.
Wide Usage
Perfect for streaming movies, playing video games, watching sports; business meeting or educational presentations; events and presentations.
Specifications:

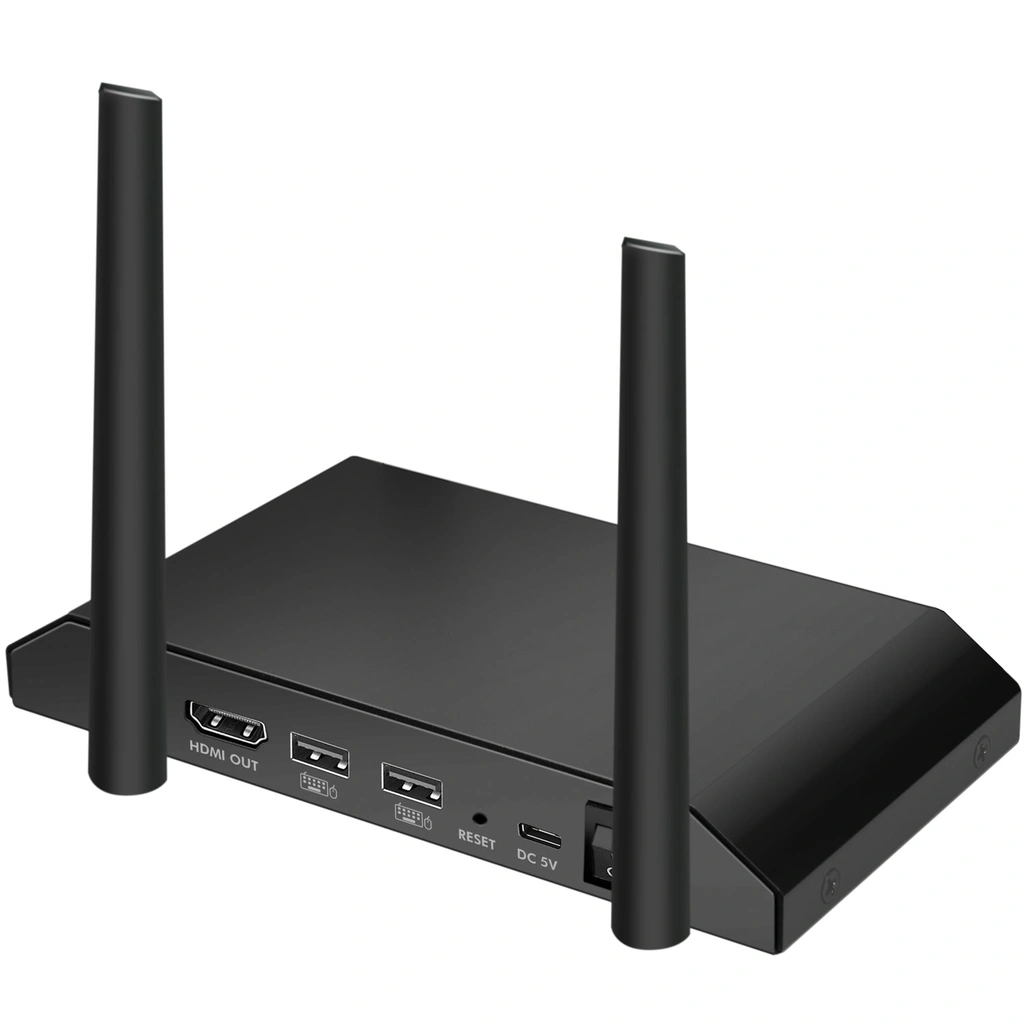

Connection: TX: 2x HDMI-A female, 1x Micro USB female, 1x USB-C female, 1x IR out. RX: 1x HDMI-A female, 2x USB-A female, 1x USB-C female
HDMI Version: 2.0
HDCP Version: 2.2
Output Resolution: Up to 4K/60 Hz (RX)
Transmission Distance: Up to 150 m (unrestricted view)
Protocol: WPA2
Security: AES 128-bit encryption
Latency: 100 ms (at 60 fps)
Wireless Standard: IEEE 802.11b/g/n/ac, 2.4G/5G, 2T2R
Frequency Range: TX: 5150–5250 MHz, RX: 5150–5250 MHz
Max. Transmission Power: TX: 57 mW, RX: 58 mW
Sound format: PCM (2 channels)
IR Extended Function: Support 38–56 KHz wide frequency
USB KVM: Support mouse/keyboard/touch panel back control
Auto Pairing & Connection: Yes
LED Indication: Yes
Operating Temperature: 0–40°C
Operating Humidity: 10–80% RH (non-condensing)
Dimensions: TX/RX: 15.4 x 7.75 x 2.1 cm
Weight: TX/RX: 330 g
Compatibility: Windows, macOS, iOS, iPadOS, Android
Power Supply: DC 5 V/2 A (10 W max.)
Color: Black
Package Contents:
1x Receiver
1x HDMI Cable
1x USB-C Cable
1x Power Adapters
1x User Manual
Product document
EC-Declaration of Conformity
