Network cable Installation CAT6 U/UTP Copper 100m

Show all products of LogiLink

Specification

Package Dimensions (LxWxH)

0.266 x 0.1 x 0.264 m

Gross Weight

3.96 kg
Description

Article no: A15217
MPN CQ2100U
EAN: : 4052792027440
For full box order: 6

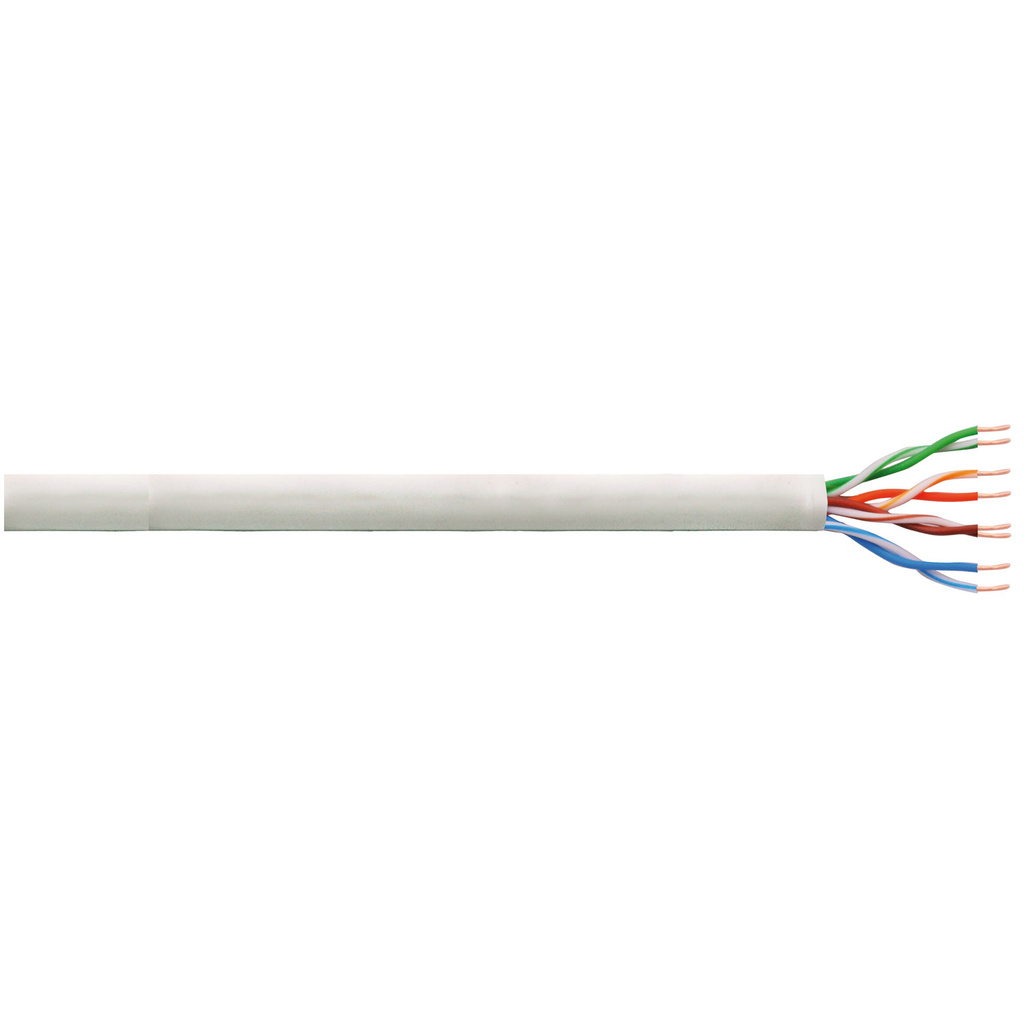

LogiLink Installation cable PrimeLine, Cat.6, U/UTP, grey, 100 m

LogiLink‘s CAT6 unshielded twisted pair (UTP) cable is preferable for indoor high speed networks. This CAT6 UTP cable is well suited for voice, data, video, and security applications (PoE). It meets or exceeds industry standards.
The 23 AWG diameter solid bare copper conductors are configured in unshielded twisted pairs for low attenuation and excellent crosstalk qualities.
This CAT 6 UTP cable is jacketed in low smoke zero halogen (LS0H) coating, and is intended for indoor usage.

• U/UTP Cat.6 solid network cable
• Performance: Cat.6 250 MHz Class E
• Standards: ISO / IEC 11801, EN 50575, TIA-568B
• Application: 1000BASE-T, 5GBASE-T & 10GBASE-T
• Construction: 4 x 2 x 23/1AWG, copper wire Ø 0.53 mm
• Sheath: Halogen free, grey, 5.9 mm cable diameter
• Fire protection class: Eca (EN50575: 2014 / A1: 2016)

Operation Conditions
Temperature range (indoor): -20°C to +60°C
Bending radius: Static 4 x D
Fire behaviour: LSZH, CPR class: Eca

Color: Grey

Length: 100 m
