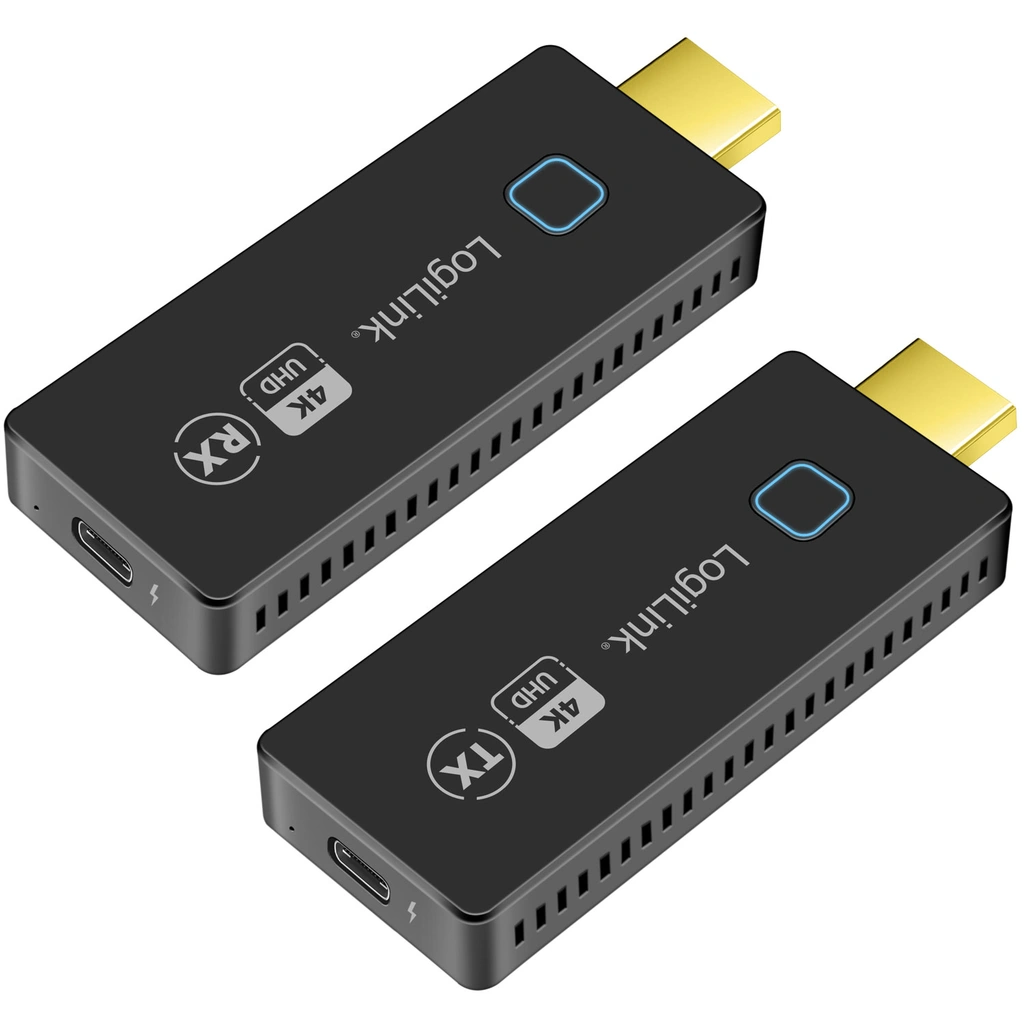

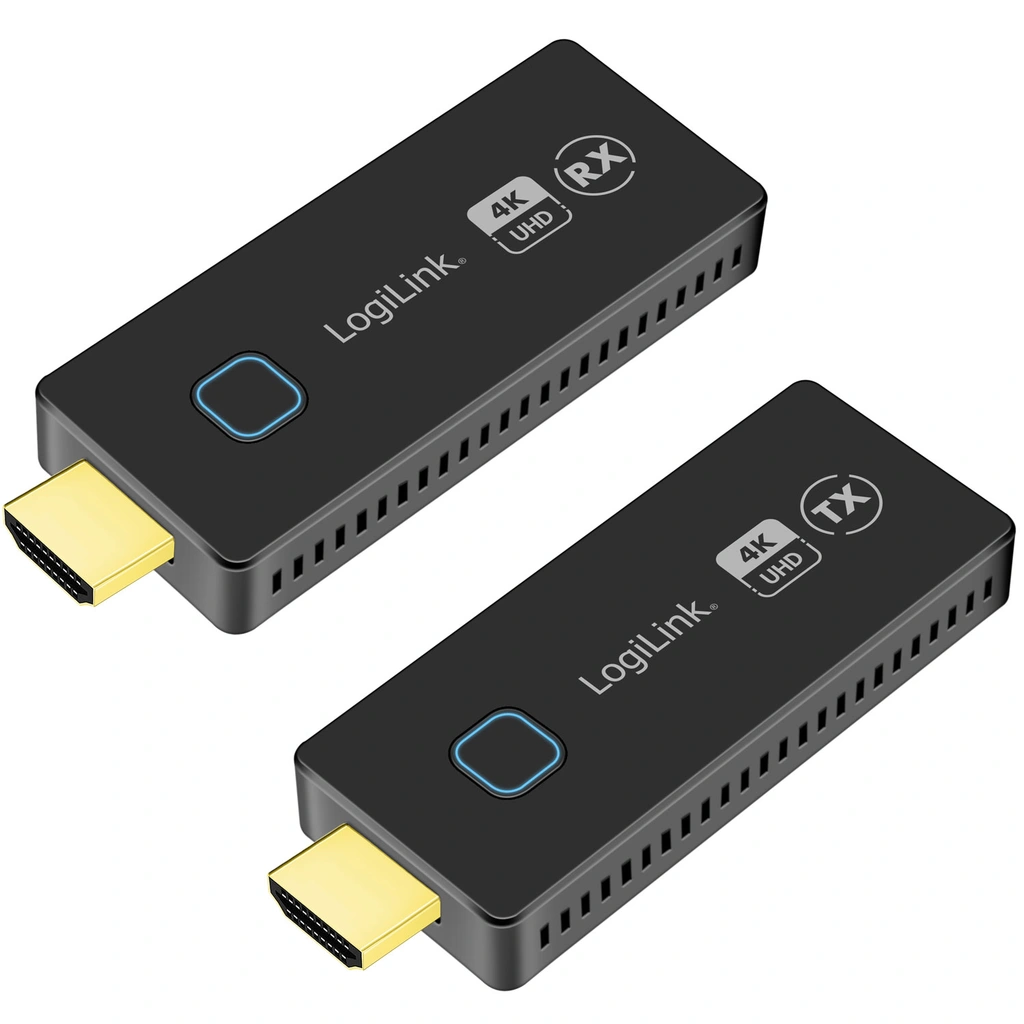

LogiLink HDW0102 4K Wireless Video Extender Set HDMI to HDMI 30 m
With the wireless HDMI transmission set from LogiLink, you can transmit HDMI video and audio signals wirelessly over a distance of up to 30 m in clear view.
Operation and installation are child's play. Real plug & play. The transmitter and receiver can be powered via the HDMI port of your device (0.5A required), alternatively with the supplied USB-C cable via the USB port of your notebook, PC, etc.
Thanks to the compact design of the transmitter and receiver, it can be installed easily, quickly and individually – also a perfect solution for spontaneous or short-term installations in meeting rooms.
• Based on HDMI 2.0 technology and Wireless Standard 802.11ac
• Bandwidth: 6 Gbit/s/600 MHz per channel (18 Gbit/s total)
• Supports Full HD A/V signal transmission up to 30 m/98 ft via 5 GHz band
• Supports video resolution of Ultra HD 4K/60 Hz (YUV 4:2:0) and Full 3D
• Compliant with HDCP 1.4 and 2.2
• Support audio in PCM 2 channel stereo format
• Nearly zero latency
• Metal chassis
• Power supply unit: DC 5 V/0.5 A
• Plug-and-play – no driver installation needed
Seamless Connectivity, Unmatched Clarity!
Wirelessly transmits HDMI video and audio signals in UHD 4K/60 Hz over a distance of up to 30 m with an unobstructed view.
Point-to-Point Connection: HDMI to HDMI
Screen sharing from your notebook or tablet to a HDMI TV/Monitor
Enhanced Viewing Experience
Ultra-high-definition (4K) picture quality ensures crystal clear images and vibrant colors.
Freedom from Cables
Eliminates the need for HDMI cables, reducing clutter and providing a clean setup
Low Latency
Ensures smooth, lag-free video and audio transmission, which is crucial for gaming and real-time presentations
Easy Setup
Plug-and-play functionality makes it easy to install and use without extensive configuration
Portability
Compact design makes it easy to move and set up in different locations, suitable for both home and professional use
Compatibility
Works with a wide range of devices, including TVs, projectors, laptops, and gaming consoles.
Wide Usage
Perfect for streaming movies, playing video games, watching sports; business meeting or educational presentations; events and presentations.
Specifications:
Connection: TX/RX: 1x HDMI-A male, 1x USB-C female
HDMI Version: 2.0/1.4
HDCP Version: 2.2/1.4
Output Resolution: Up to 4K/60 Hz
Transmission Distance: Up to 30 m (unrestricted view)
Protocol: WPA2
Security: AES 128-bit encryption
Latency: 100 ms (at 60 fps)
Wireless Standard: 802.11ac
Frequency Range: TX: 5180–5240 MHz/5745–5825 MHz. RX: 5180–5240 MHz/5745–5825 MHz
Max. Transmission Power: TX: 17.37 mW/18.23 mW. RX: 22.02 mW/19.72 mW
Sound format: PCM (2 channels)
Auto Pairing & Connection: Yes
LED Indication: Yes
Operating Temperature: 0–40°C
Operating Humidity: 10–80% RH (non-condensing)
Dimensions: TX/RX: 9.1 x 3.4 x 1.28 cm
Weight: TX: 28 g, RX: 25.5 g
Compatibility: Windows, macOS, iOS, iPadOS, Android
Power Supply: Powered through USB-C port (5 V/1 A, 5 W max.)
Color: Black
Product document
EC-Declaration of Conformity
