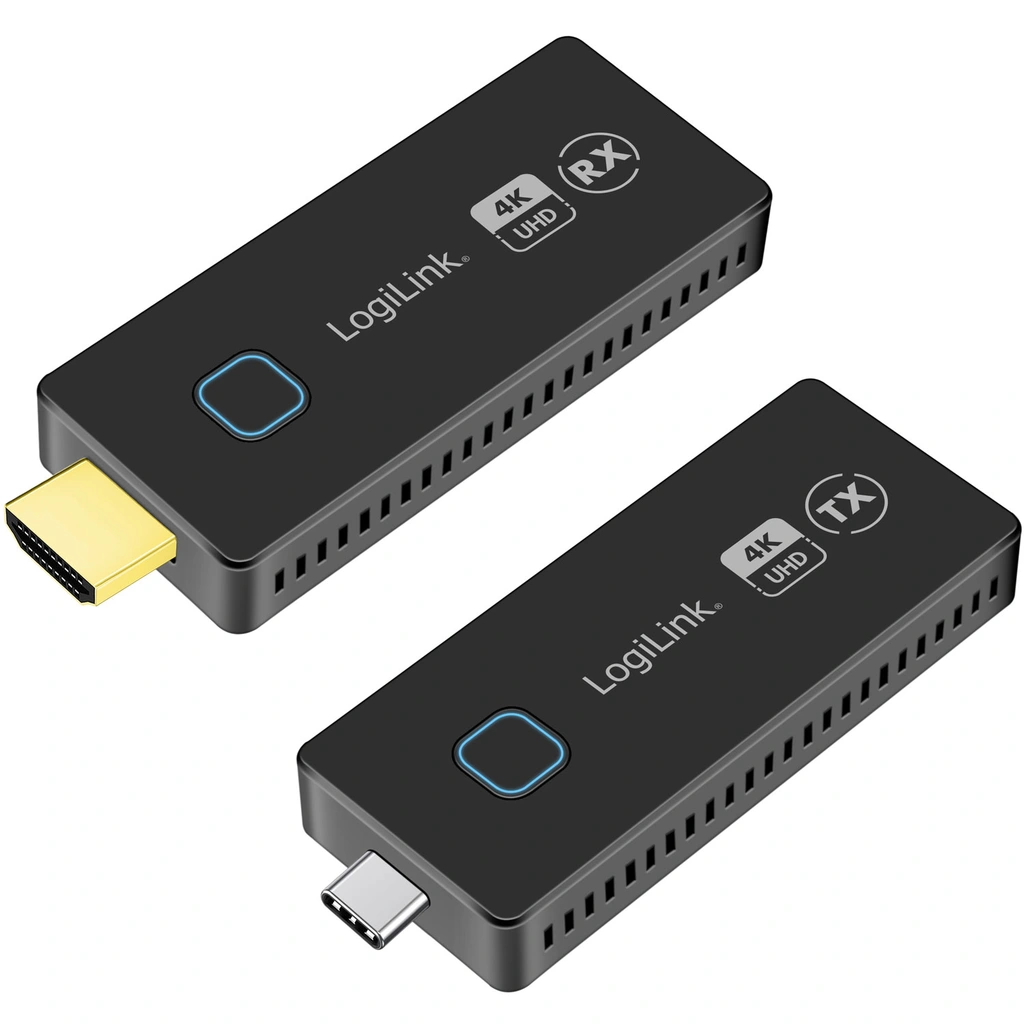

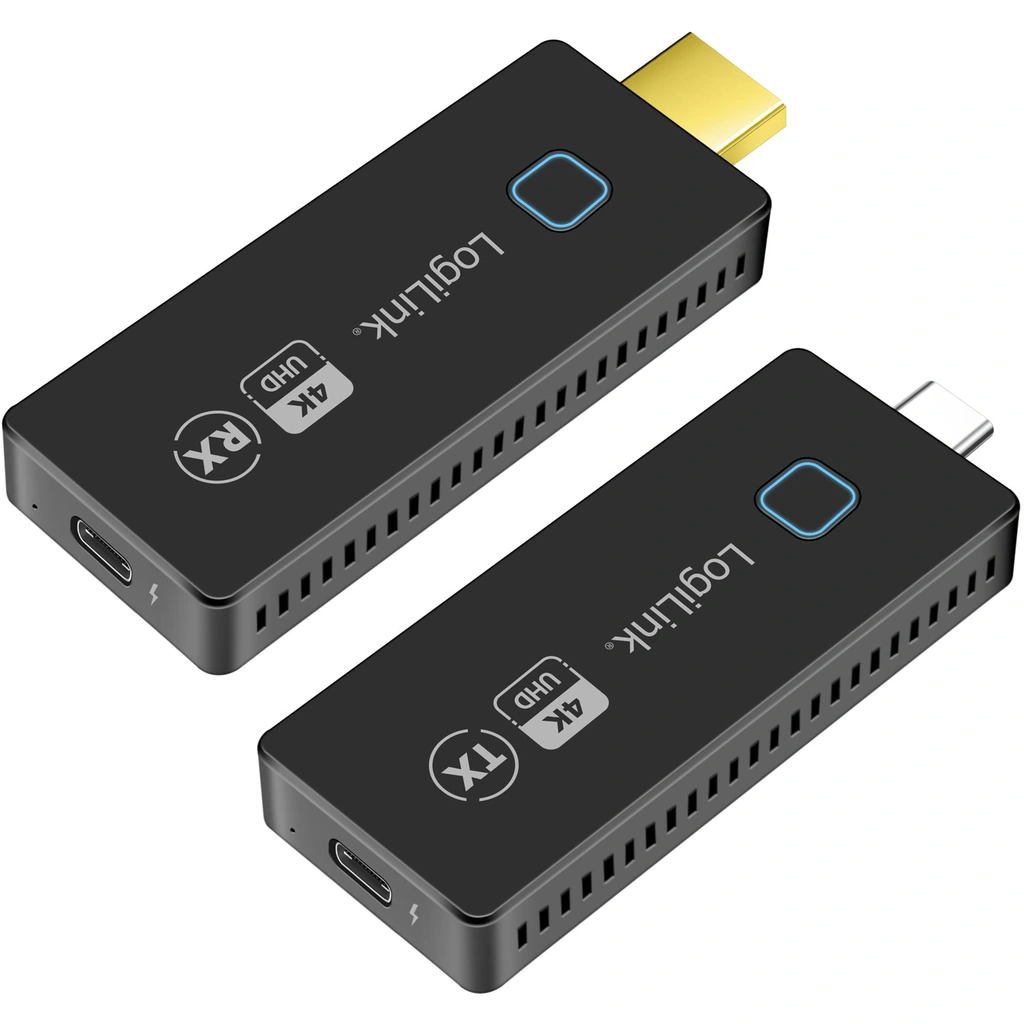

LogiLink HDW0104 4K Wireless Video Extender Set: USB-C to HDMI
4K/60 Hz, 30 m
Seamless Connectivity, Unmatched Clarity!
Wirelessly transmits HDMI video and audio signals in UHD 4K/60 Hz over a distance of up to 30 m with an unobstructed view.
The wireless HDMI KVM transmission set from LogiLink transmits your HDMI video and audio signals in Ultra HD (4K) resolution wirelessly over a distance of up to 150 m (with unrestricted visibility). Thanks to the KVM functionality, your mouse and keyboard can be connected to the receiver unit, allowing you to control the signal source directly on the output device. The auto-pairing function promises simple installation. Support for the multicast function means that up to 4 receiver units or end devices can be connected and used simultaneously. Save yourself the trouble of laying HDMI cables and use this easy-to-use wireless HDMI extender system.
• Based on HDMI 2.0 technology and Wireless Standard 802.11ac
• Bandwidth: 6 Gbit/s/600 MHz per channel (18 Gbit/s total)
• Supports UHD A/V signal transmission up to 150 m/492 ft
• Supports video resolution of Ultra HD 4K/60 Hz (YUV 4:2:0)
• Compliant with HDCP 2.2
• Supports DDC and KVM function (Mouse / Keyboard connection)
• Support audio in PCM 2 channel stereo format
• Nearly zero latency
• Metal chassis
• Power supply unit: DC 5 V/1 A
• Plug-and-play – no driver installation needed
Point-to-Point Connection: USB-C to HDMI
Screen sharing from your notebook or tablet to a HDMI TV/Monitor
Enhanced Viewing Experience
Ultra-high-definition (4K) picture quality ensures crystal clear images and vibrant colors
Freedom from Cables
Eliminates the need for HDMI cables, reducing clutter and providing a clean setup
Low Latency
Ensures smooth, lag-free video and audio transmission, which is crucial for gaming and real-time presentations.
Easy to Setup
Plug-and-play functionality makes it easy to install and use without extensive configuration.
Portability
Compact design makes it easy to move and set up in different locations, suitable for both home and professional use
Compatibility
Works with a wide range of devices, including TVs, projectors, laptops, and gaming consoles.
Wide Usage
Perfect for streaming movies, playing video games, watching sports; business meeting or educational presentations; events and presentations.
Specifications:
Connection: TX: 1x USB-C male, 1x USB-C female. RX: 1x HDMI-A male, 1x USB-C female
HDMI Version: 2.0/1.4
HDCP Version: 2.2/1.4
Output Resolution: Up to 4K/60 Hz
Transmission Distance: Up to 30 m (unrestricted view)
Protocol: WPA2
Security: AES 128-bit encryption
Latency: 100 ms (at 60 fps)
Wireless Standard: 802.11ac
Frequency Range: TX: 5180–5240 MHz/5745–5825 MHz. RX: 5180–5240 MHz/5745–5825 MHz
Max. Transmission Power: TX: 17.37 mW/18.23 mW. RX: 22.02 mW/19.72 mW
Sound format: PCM (2 channels)
Auto Pairing & Connection: Yes
LED Indication: Yes
Operating Temperature: 0–40°C
Operating Humidity: 10–80% RH (non-condensing)
Dimensions: TX: 8.75 x 3.4 x 1.28 cm. RX: 9.1 x 3.4 x 1.28 cm
Weight: TX: 37.5 g, RX: 25.5 g
Compatibility: Windows, macOS, iOS, iPadOS, Android
Power Supply: Powered through USB-C port (5 V/1 A, 5 W max.)
Color: Black
Package Contents:
1x Transmitter
1x Receiver
1x HDMI Extension Cable
1x USB-C Extension Cable
2x USB-C to USB-A Cable
1x User Manual
Product document
EC-Declaration of Conformity
