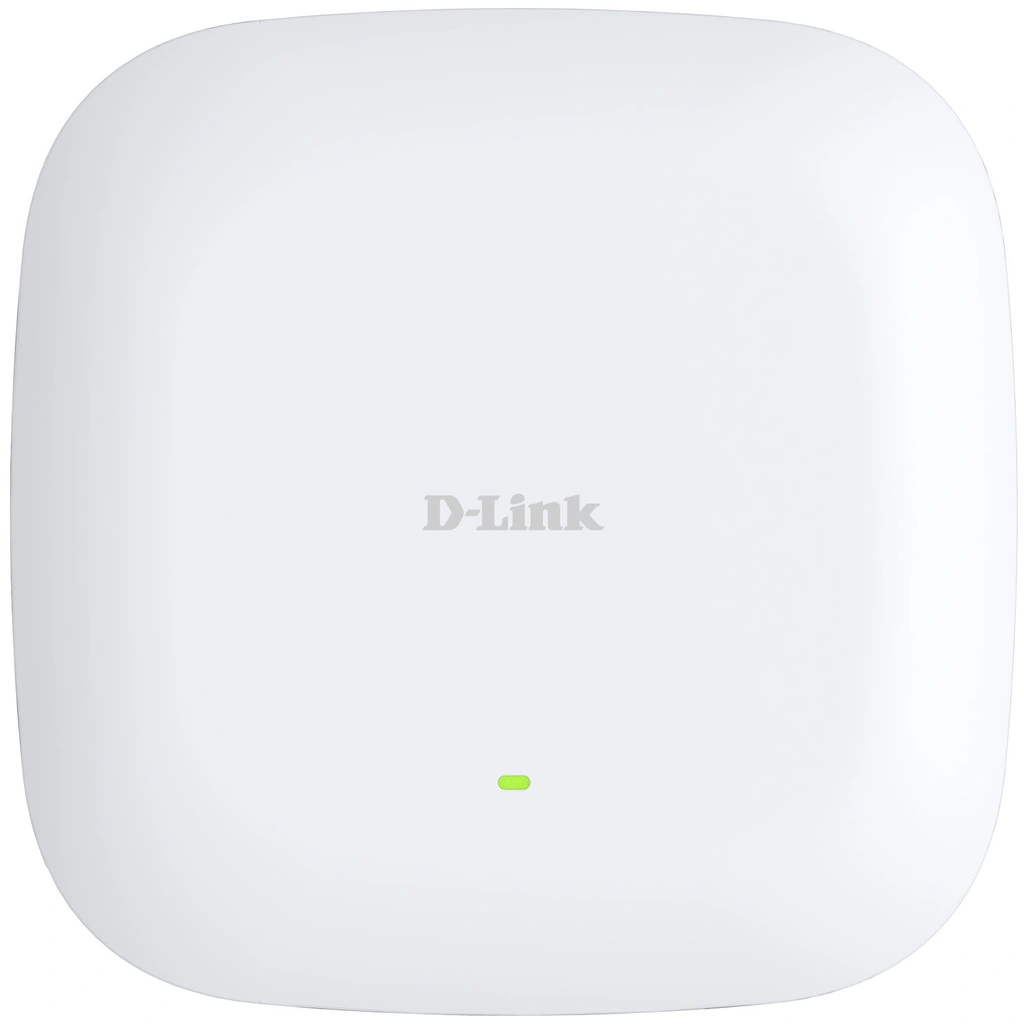

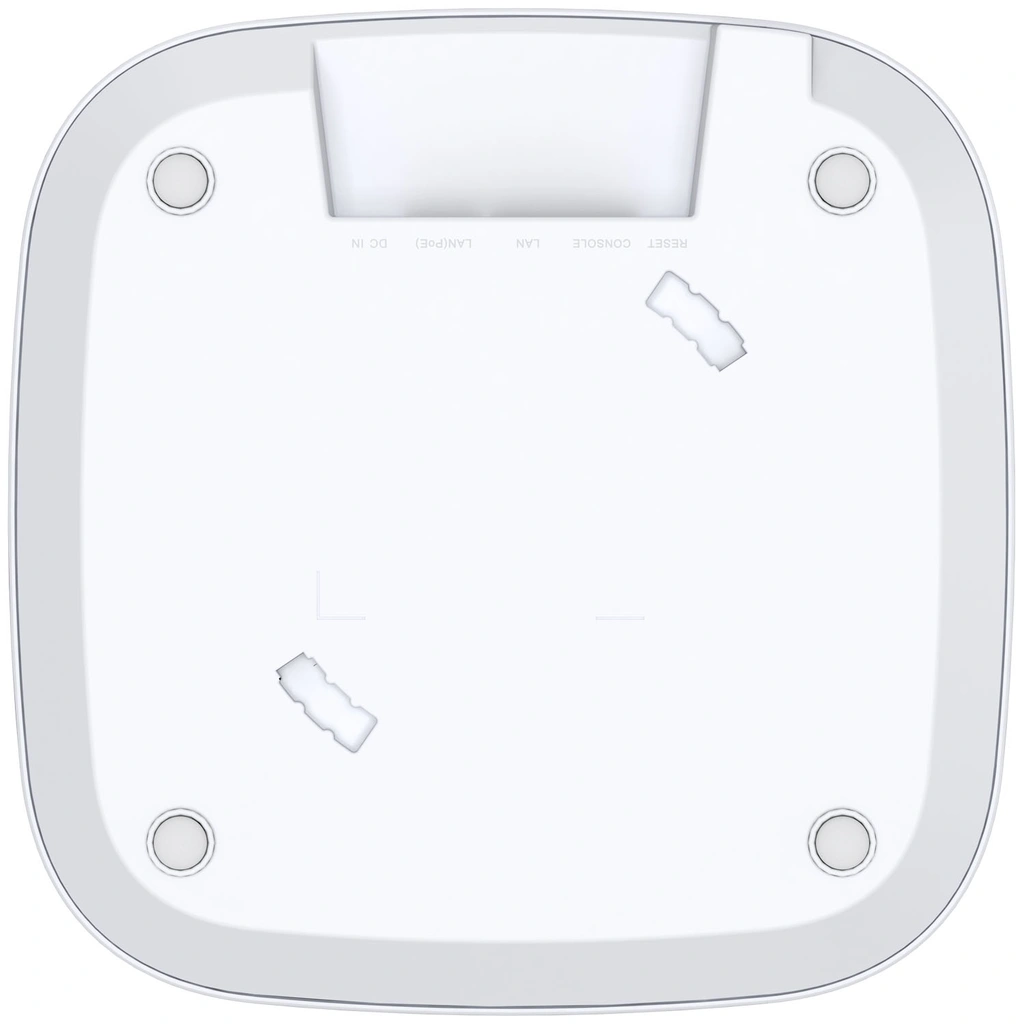

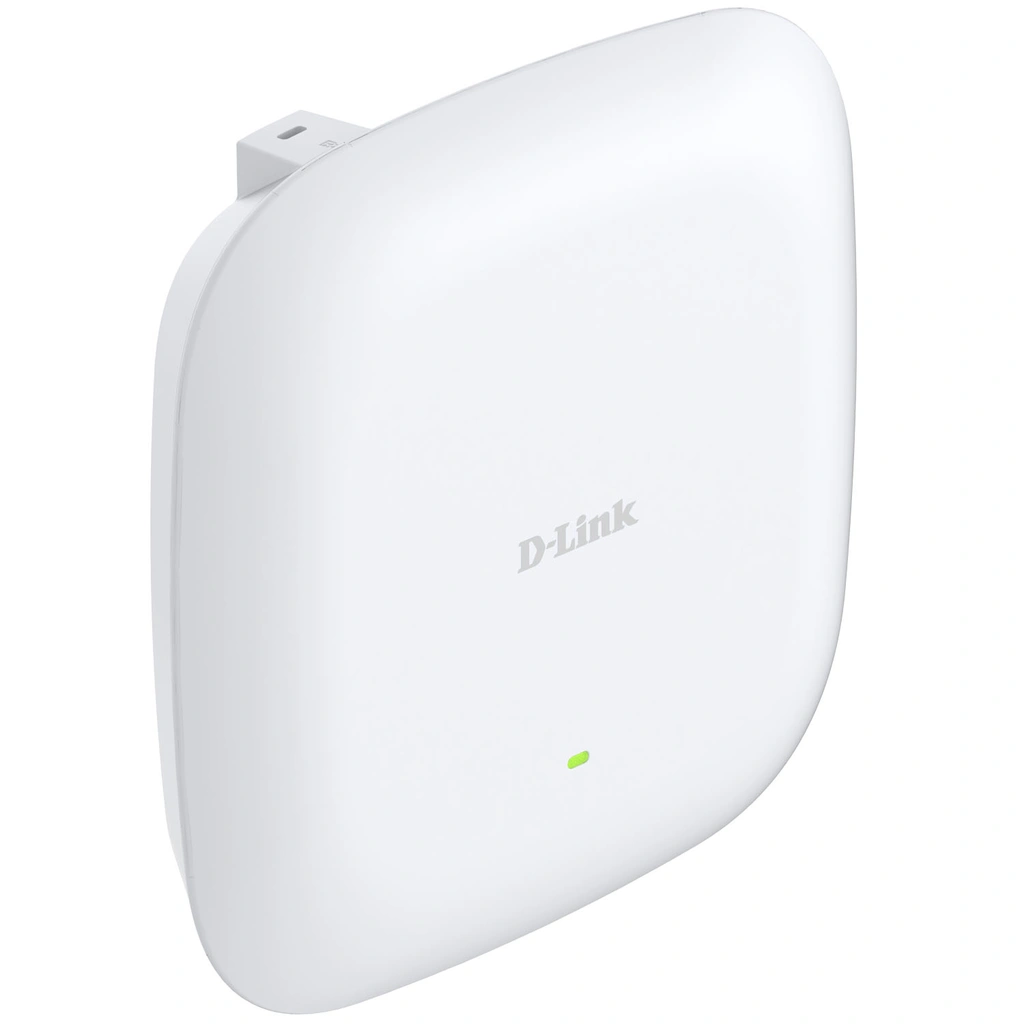

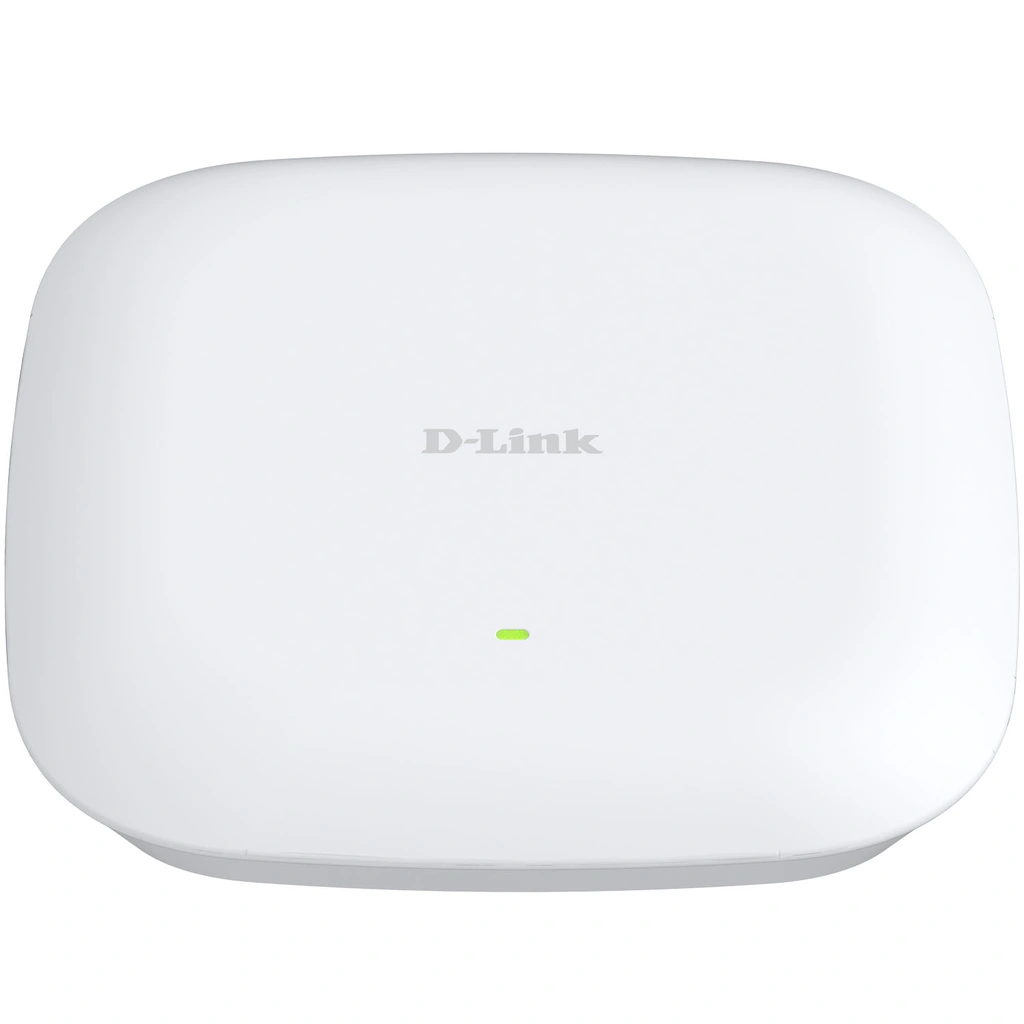

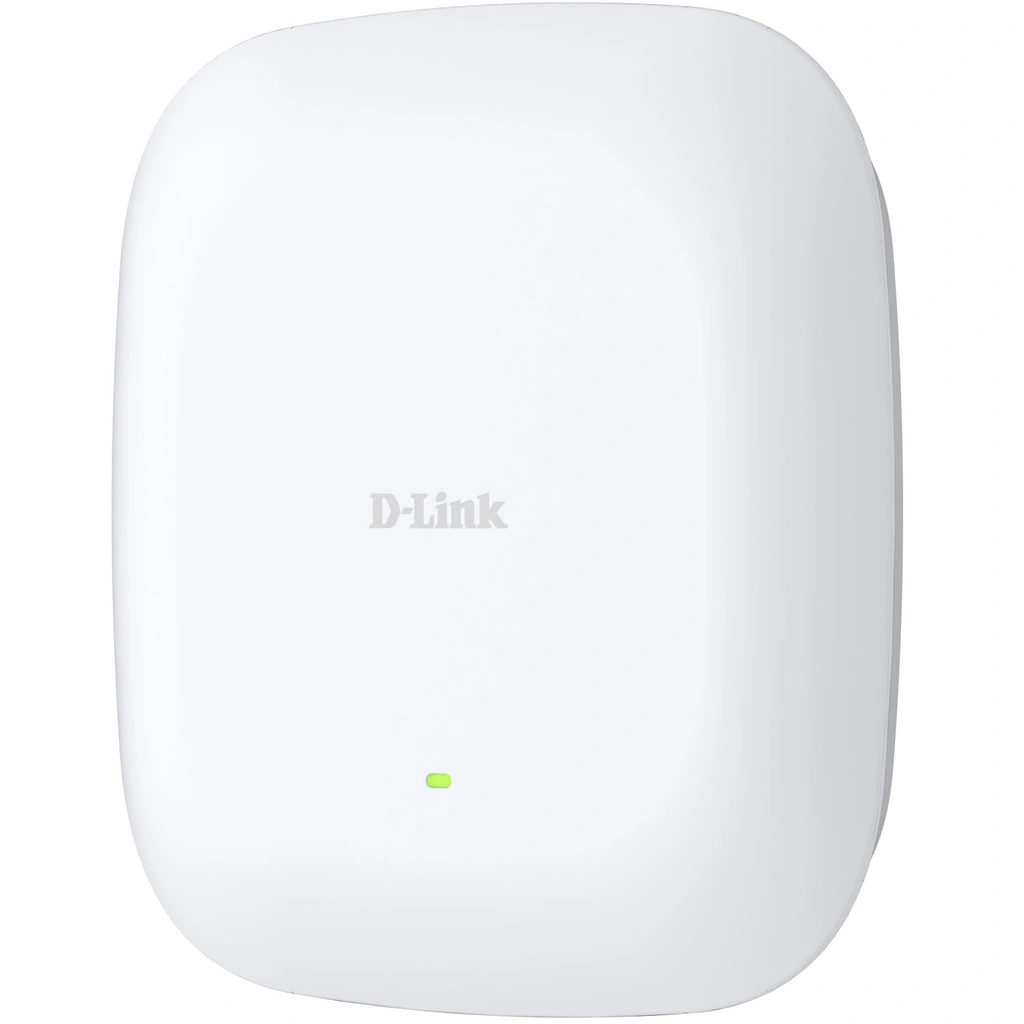

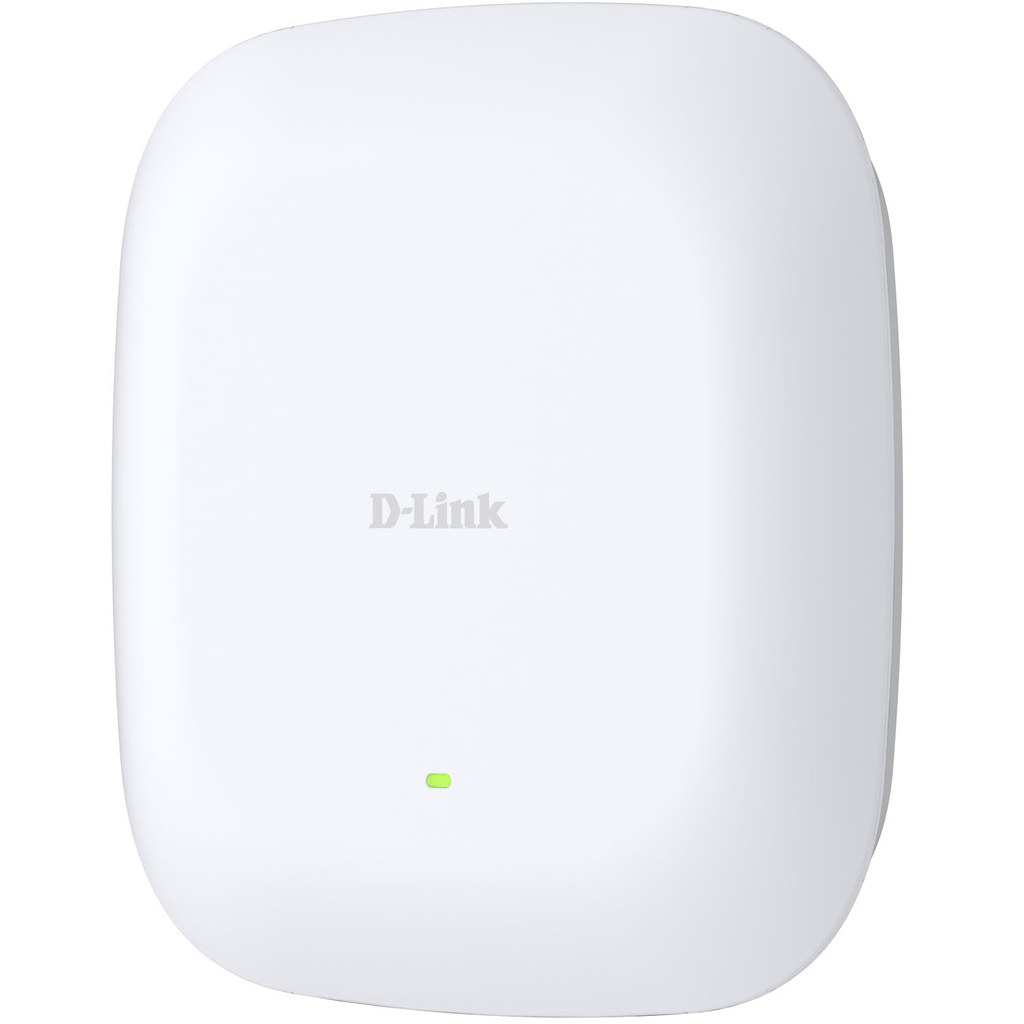

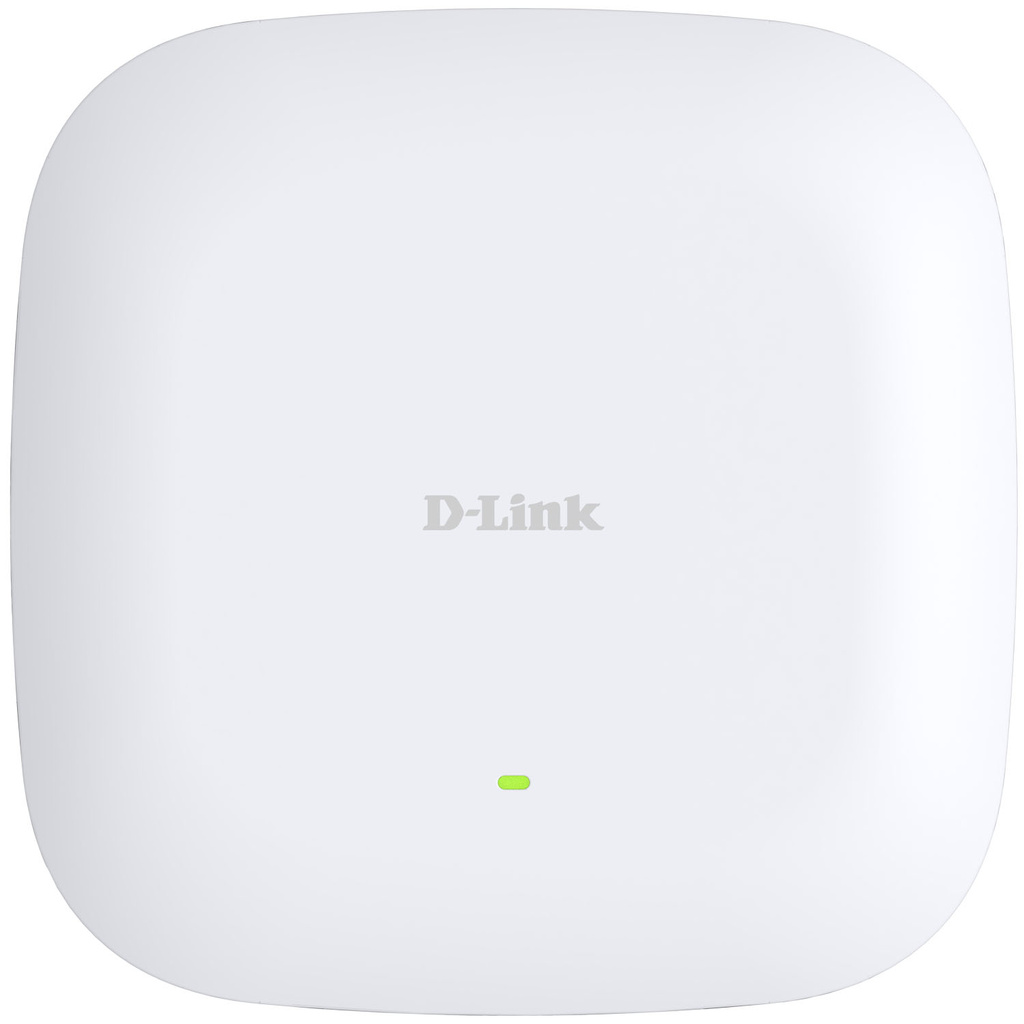

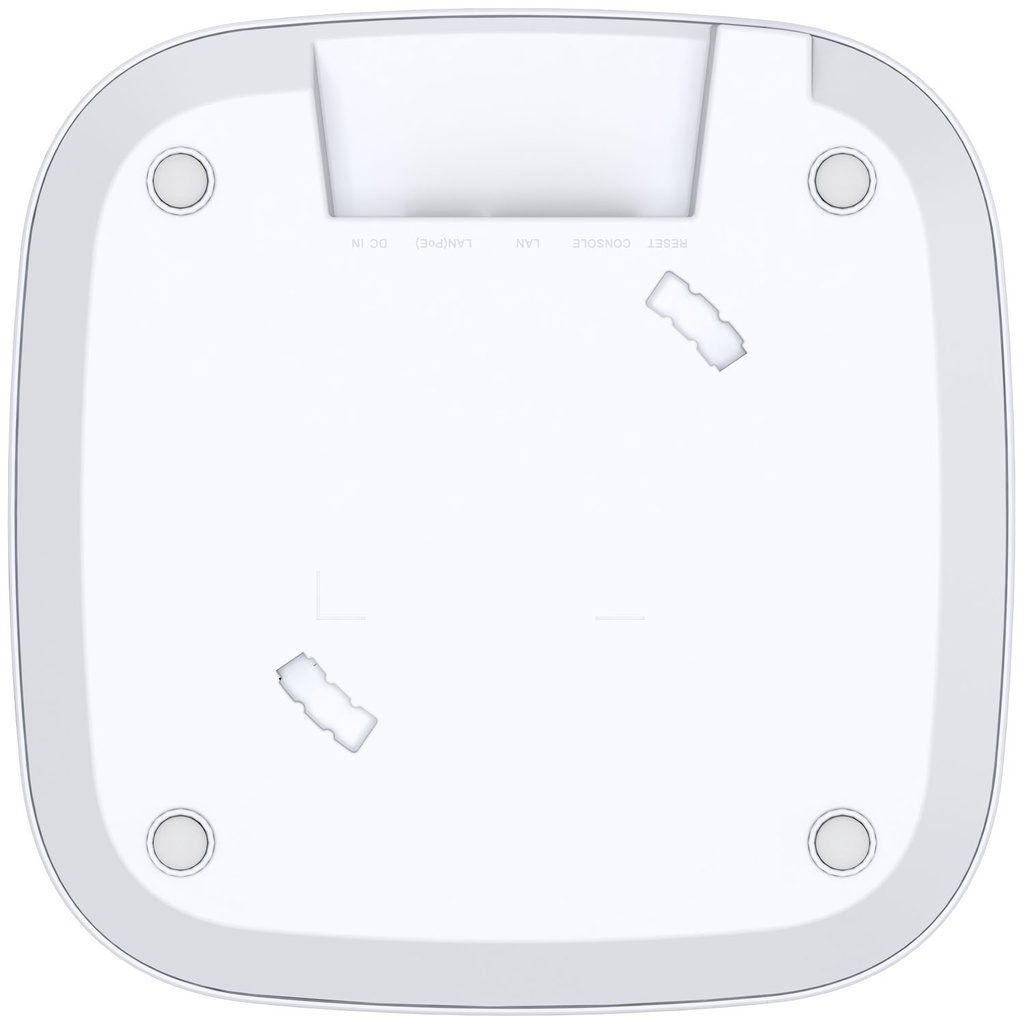

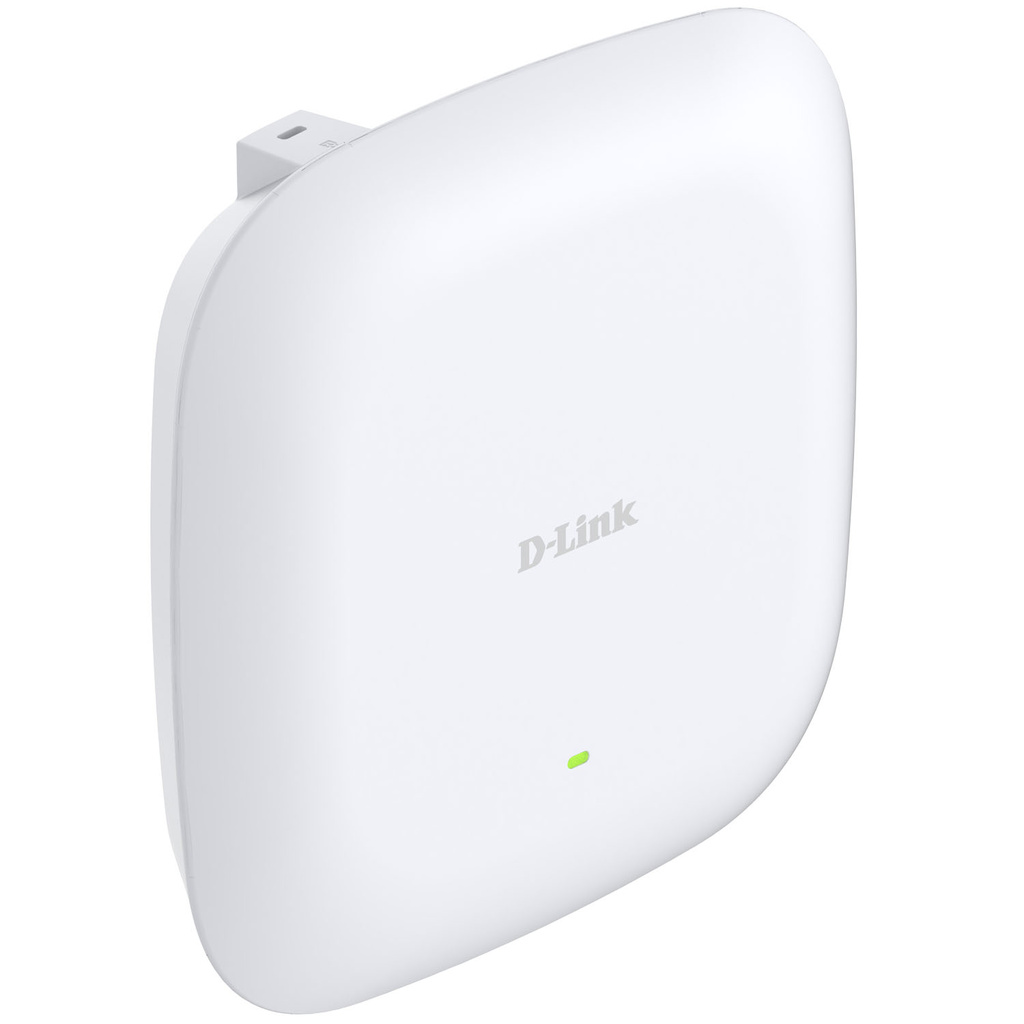

D-Link DAP-E9560 BE9500 Wi-Fi 7 Ceiling Mount Access Point
• Wi-Fi 7 BE9500 Tri-band high-speed connectivity
• 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
• Powered by 802.3bt PoE, USB-C adapter
• Max. channel bandwidth support (320MHz)
• 4096-QAM – Up to 20% faster than Wi-Fi 6
• Flexible use of multiple operating modes
• WPA3 encryption for enhanced Wi-Fi security
• Customizable Captive Portal for user access
• Multi-Link Operation boosts connection stability
• Centrally managed via Nuclias Network Controller
Enhanced Performance for All Applications
Wi-Fi 7 will reduce interference and enhance the performance of your wireless network, making it suitable for various usage environments and applications, such as remote work, video conferencing, large file transfers, streaming media, AR/VR, and cloud service access.
Multiple Operation Modes
The DAP-E9560 can be configured to fit the needs of your network and optimize performance.
．Access Point
．Wireless Distribution System (WDS) with Access Point
．WDS/Bridge (no AP broadcasting)
Optimized Wired Performance with 10G PoE and 2.5G Ports
Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.
Centralized Network Control Made Simple
The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.
• Wi-Fi 7 technology provides ultra high-speed performance, greater capacity, interference mitigation, and less network congestion
• Tri-band (2.4 GHz/5 GHz/6 GHz) utilizing ultra-wide 320 MHz channels ensures smoother, blazing-fast data transmission
• 4096-QAM significantly increases data transmission and capacity up to 20% more than Wi-Fi 6
• OFDMA, MU-MIMO and beamforming reduce latency, improve Wi-Fi efficiency, and transmit to more devices simultaneously
• Latest WPA3 TM data encryption provides the most robust network protection while Enhanced Open provides encrypted access to open, public networks in venues such as hotels, libraries, and malls
• Multi-Link Operation (MLO) technology improves latency for real-time applications, enhances network reliability, and delivers significantly higher throughput
• 10-Gigabit Ethernet port provides reliable and high-performance connectivity
• Power over Ethernet (802.3bt) means less wires, for cleaner and easier deployment
• Managed by Nuclias Connect platform for device configurations and real-time monitoring
SME (Enterprise)
User benefits:
• High-speed data for better productivity
• Smooth video calls and collaboration
• Stable performance for many devices
• Fast roaming across floors
• Enhanced your productivity
• Secure access with WPA3 and VLANs
---
Department Store (Business)
User benefits :
• High-bandwidth uplinks for fast, stable connections
• Rapid fault recovery for reliable performance
• Comprehensive security to protect critical data
• Supports long-distance connectivity
• VLAN and QoS to optimize the learning experience
---
Transnational University (Education)
User benefits :
• High-speed connectivity across campus
• Reliable performance in high-density areas
• Low latency for online learning and research
• Fast roaming between buildings
• Supports AR/VR and 4K applications
• Secure access for all user groups
Specifications

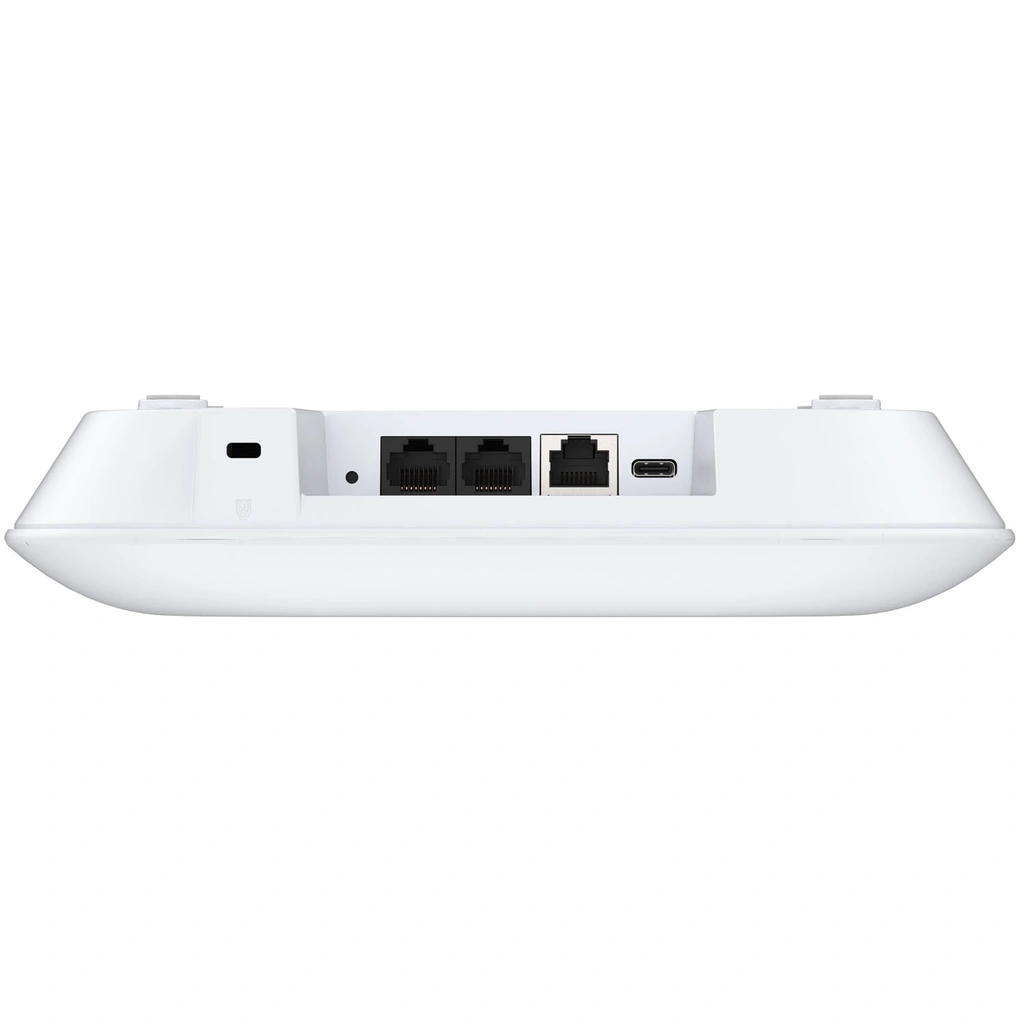

Interfaces: 1 x 10-Gigabit Ethernet PoE LAN port, 1 x 2.5-Gigabit Ethernet LAN port
Antenna type: 2 x 2.4 GHz internal antennas, 2 x 5 GHz internal antennas, 2 x 6 GHz internal antennas
IEEE Standard: IEEE 802.11be/ax/ac/n/g/b/a, IEEE 802.3u/ab/an, IEEE 802.3bt PoE,
Security Protocol:
WPA/WPA2/WPA3™ Personal/Enterprise
WEP 64/128-bit
SSID broadcast disable
Enhanced Open
MAC address access control
Internal RADIUS server
Operating Frequency:
2.4 - 2.483 GHz
5,925 - 7,125 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz
Device Management:
Web (HTTP/HTTPS)
Telnet/SSH
Nuclias Network Controller
SNMP
Dimensions: 212 x 212 x 44.5 mm (W x D x H)
Power Input: 20V/2.25A
Operating Temperature: 0 - 40 °C (32 - 104 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Console Port: RJ-45 console port
Power Supply Type: USB Type-C
