D-Link

DMC-G02SC 100/1000Base-t till 1000Base-SX SC Multi-mode Media Converter 550m

Article no:
A14353
MPN:
DMC-G02SC/E
RSP: 699,00 kr
Show all products of D-Link
  • Specification
    Package Dimensions (LxWxH)
    0.078 x 0.066 x 0.108 m
    Gross Weight
    0.248 kg
  • Description
    Article no: A14353
    MPN: DMC-G02SC/E
    EAN: : 0790069470097
    For full box order: 40

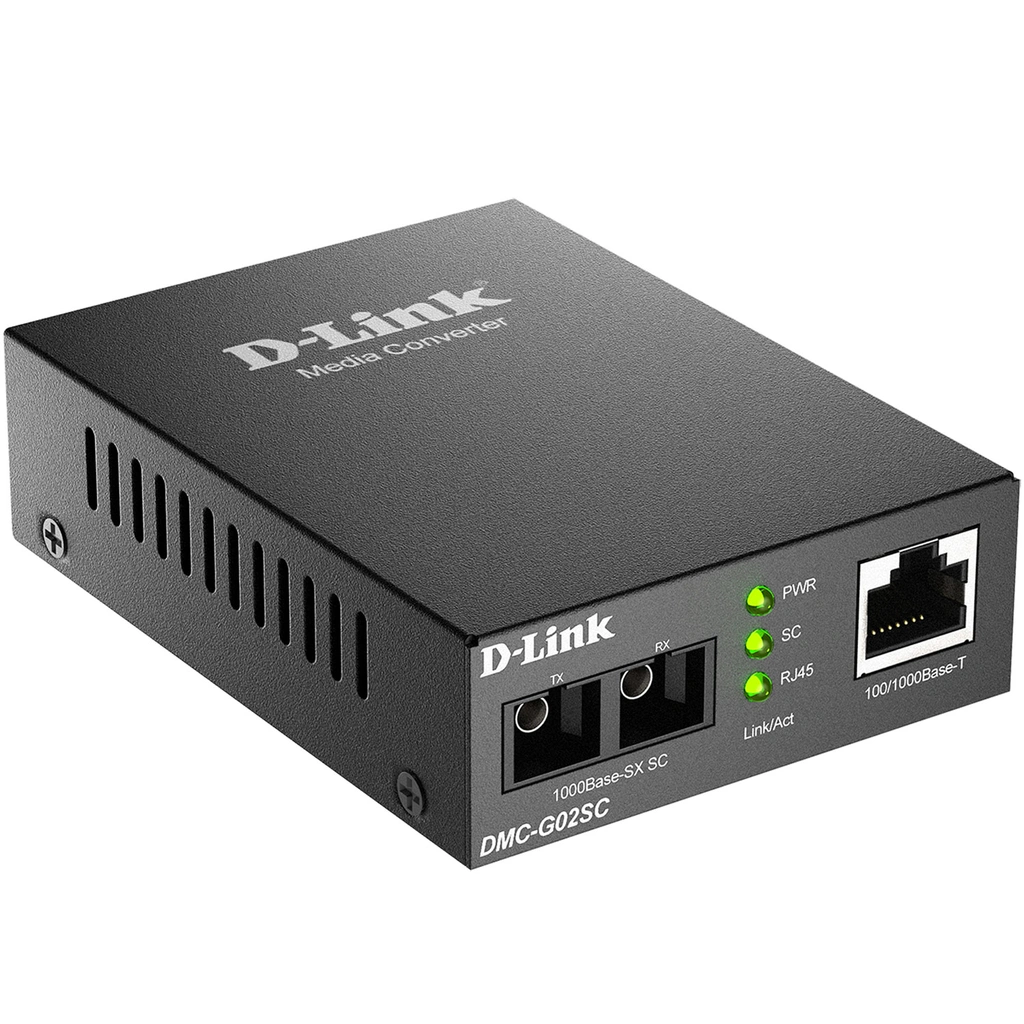

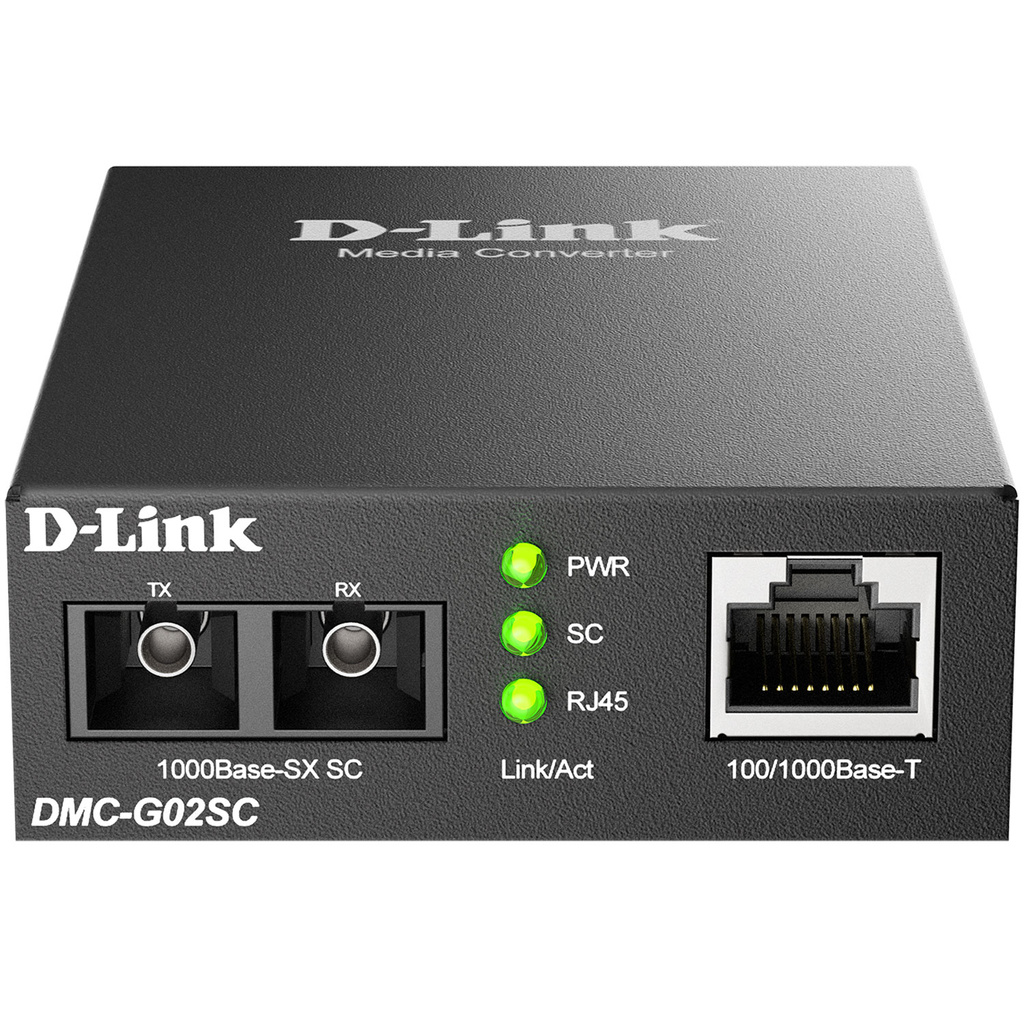

    D-Link DMC-G02SC 100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)

    The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.


    Specifications:
    Hardware
    Interfaces: 1 x 10/100/1000Base-T port, 1 x 1000Base-SX SC port, LEDs, PWR, Link/Act (SC)

    Certifications
    Safety: LVD
    EMI/EMC: CE Class B

    Standards and Functions
    IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX, IEEE 802.3x Flow Control in full-duplex mode, Auto MDI/MDIX adjustment for copper port, Link Fault Pass-through support for link status
    control

    Physical Parameters
    Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
    Weight: 124 g

    Environmental Conditions

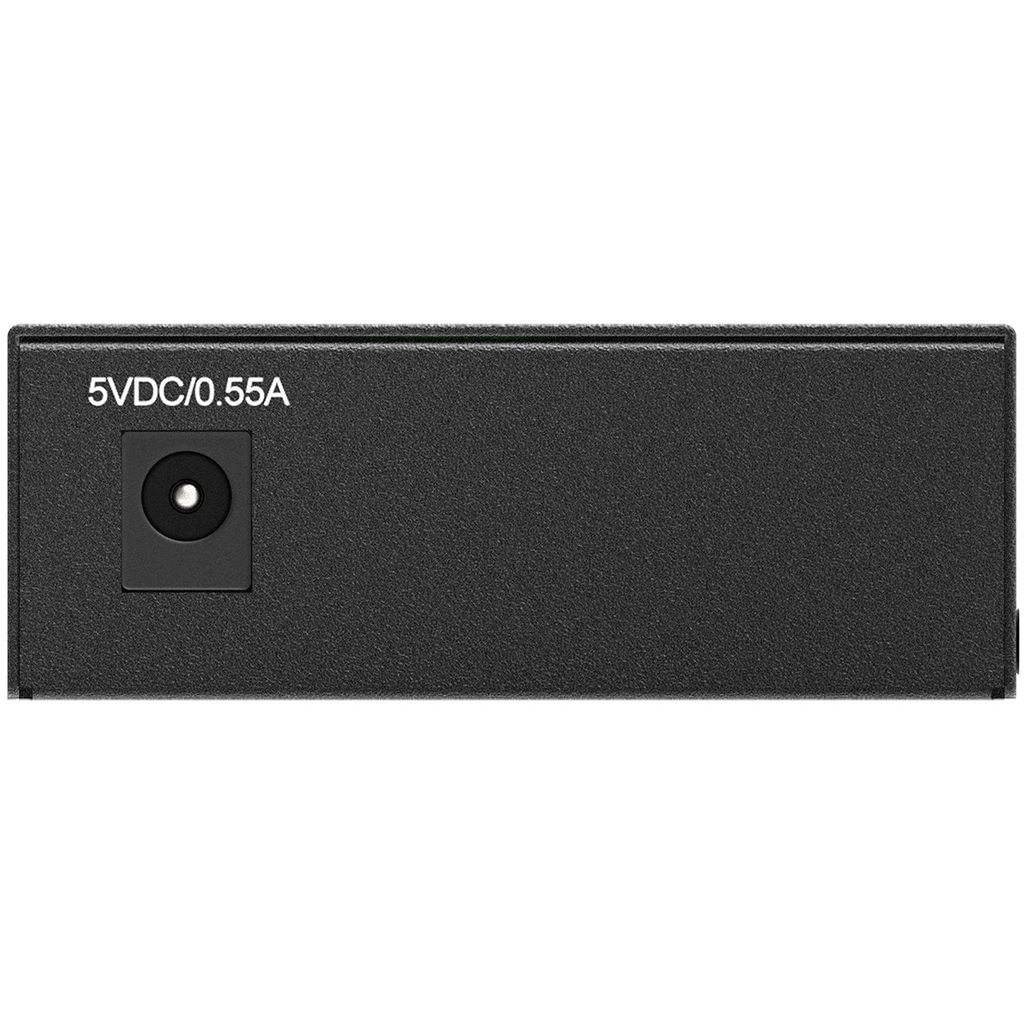

    Power Supply: 5 V DC, 0.55 A power adapter
    Max Power Consumption: 1.65 W
    Max Fiber Optic Cable Length: Up to 550 m
    Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
    Humidity: 20% to 80% non-condensing

    Product document

    D-Link DMC-G02SC 100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)

    The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.


    Specifications:
    Hardware
    Interfaces: 1 x 10/100/1000Base-T port, 1 x 1000Base-SX SC port, LEDs, PWR, Link/Act (SC)

    Certifications
    Safety: LVD
    EMI/EMC: CE Class B

    Standards and Functions
    IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX, IEEE 802.3x Flow Control in full-duplex mode, Auto MDI/MDIX adjustment for copper port, Link Fault Pass-through support for link status
    control

    Physical Parameters
    Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
    Weight: 124 g

    Environmental Conditions
    Power Supply: 5 V DC, 0.55 A power adapter
    Max Power Consumption: 1.65 W
    Max Fiber Optic Cable Length: Up to 550 m
    Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
    Humidity: 20% to 80% non-condensing

    Product document

    Read more

    D-Link DMC-G02SC 100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)

    The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.


    Specifications:
    Hardware
    Interfaces: 1 x 10/100/1000Base-T port, 1 x 1000Base-SX SC port, LEDs, PWR, Link/Act (SC)

    Certifications
    Safety: LVD
    EMI/EMC: CE Class B

    Standards and Functions
    IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX, IEEE 802.3x Flow Control in full-duplex mode, Auto MDI/MDIX adjustment for copper port, Link Fault Pass-through support for link status
    control

    Physical Parameters
    Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
    Weight: 124 g

    Environmental Conditions
    Power Supply: 5 V DC, 0.55 A power adapter
    Max Power Consumption: 1.65 W
    Max Fiber Optic Cable Length: Up to 550 m
    Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
    Humidity: 20% to 80% non-condensing

    Product document
