LogiLink

HDMI Audio extractor 2/5.1CH 4K ARC HDR SPDIF

Article no:
HD0055
MPN:
HD0055
RSP: 649,00 kr
Show all products of LogiLink
  • Specification
    Package Dimensions (LxWxH)
    0.052 x 0.11 x 0.171 m
    Gross Weight
    0.27 kg
  • Description
    Article no: HD0055
    MPN: HD0055
    EAN: : 4052792062533
    For full box order: 40

    HDMI audio extractor, 2CH, 5.1 4K/60Hz

    Adapter that separates the audio from the HDMI signal. This Audio Extractor supports resolutions up to 4K @ 60 Hz and outputs the audio separately via SPDIF or 3.5 mm stereo.

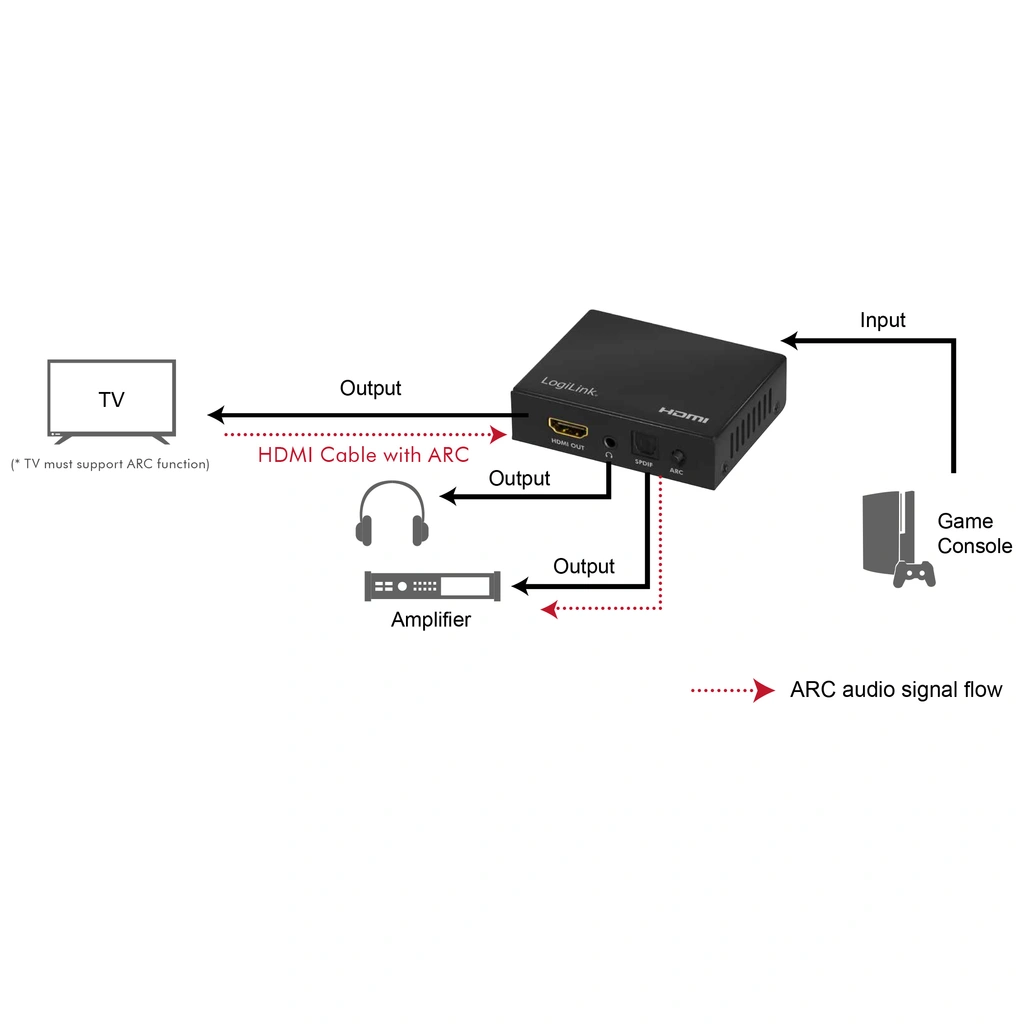

    It also supports ARC; simply connect it to an ARC-compatible TV and route the audio separately to an external audio system, such as a soundbar or amplifier.

    - Converts digital HDMI signals to analogue and digital audio (HDMI, SPDIF and 3.5 mm)
    - Supports 2.0-channel / 5.1-channel / PASS audio switching
    - Supports UHD 4K @ 60 Hz (YUV 4:4:4), Full 3D and 12-bit colour depth
    - Supports HDCP 2.2
    - Supports HDR and CEC
    - Supported audio formats for HDMI output: DTS-HD Master Audio™ / Dolby TrueHD
    - Plug and play, no drivers required

    Specifications

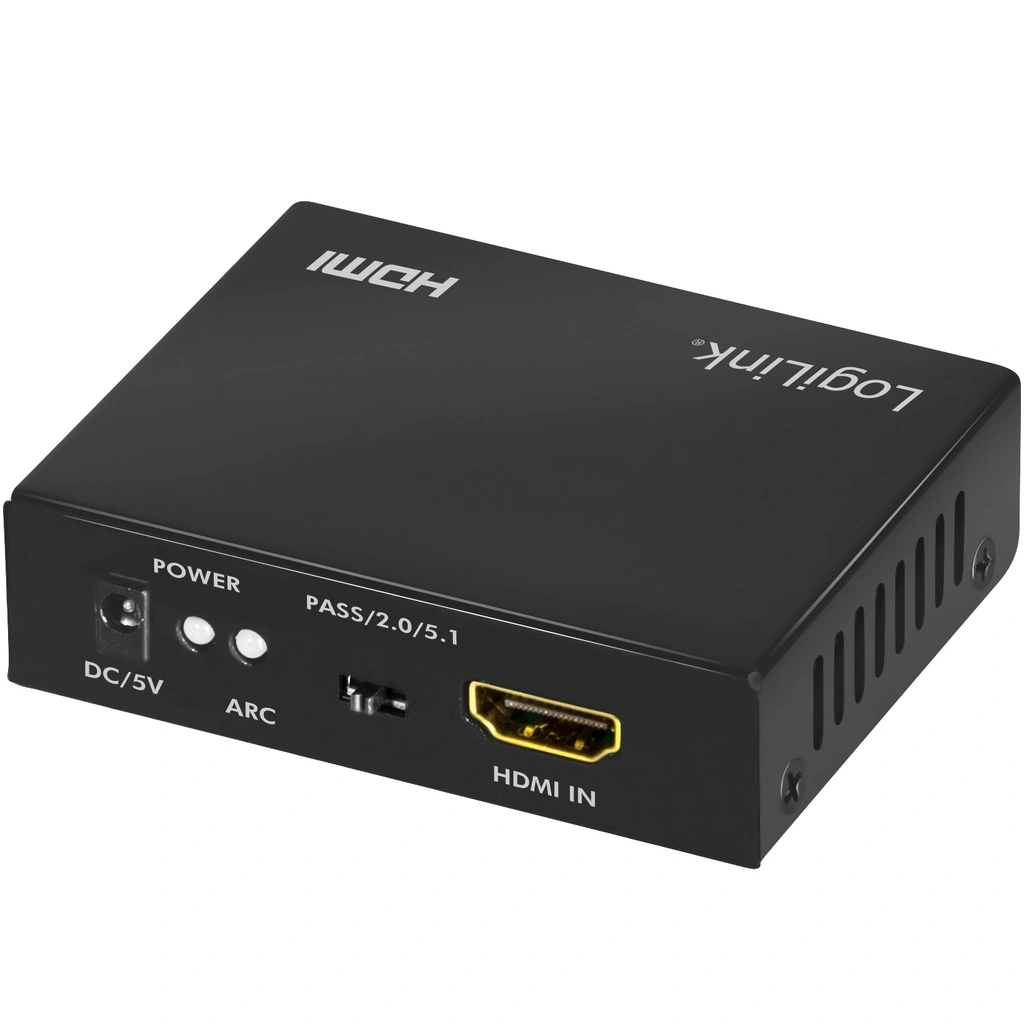

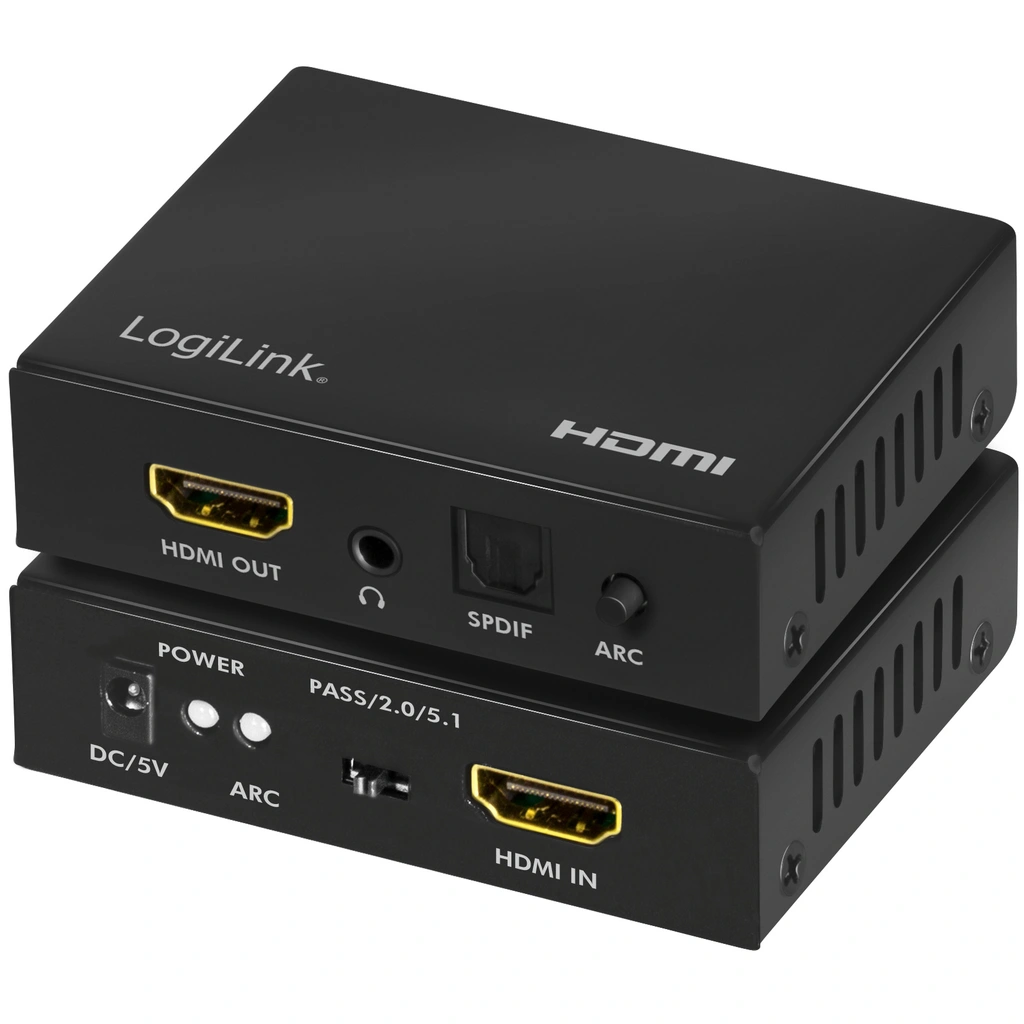

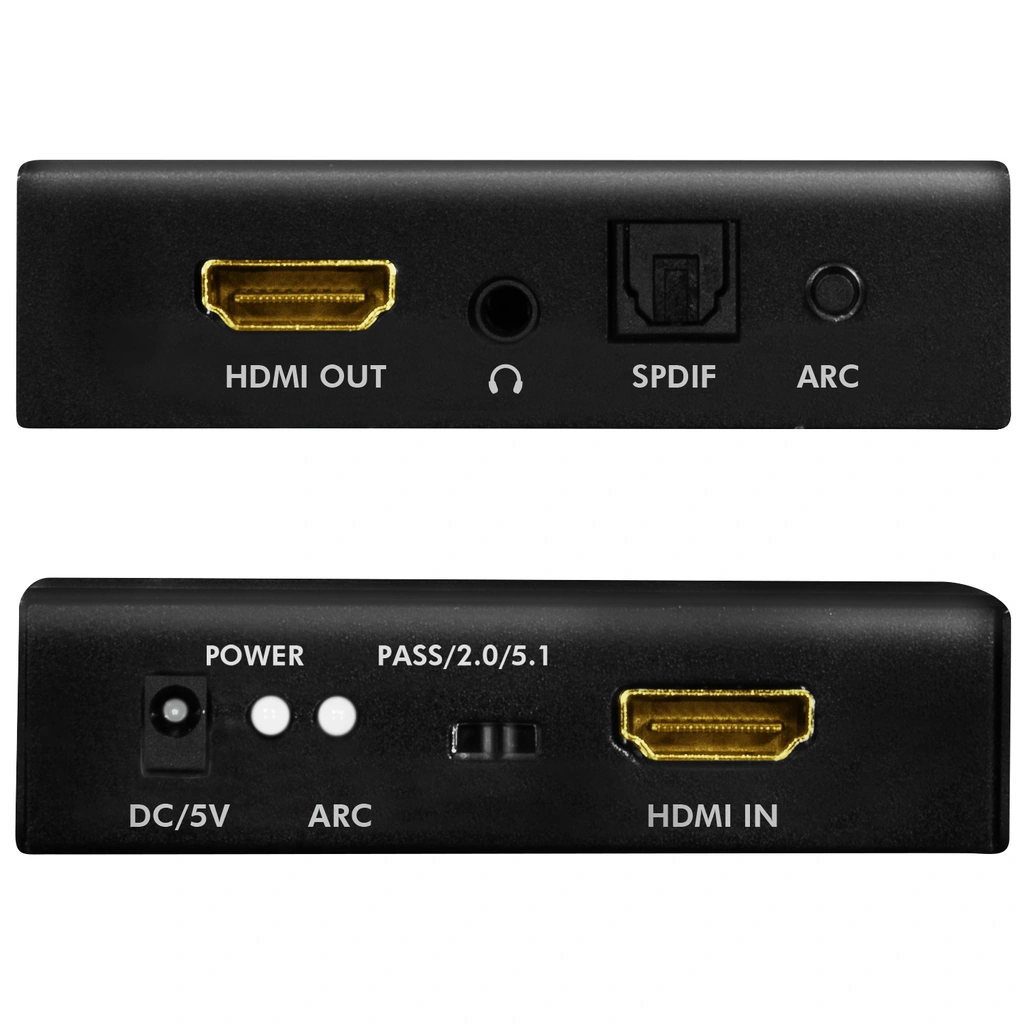

    Inputs: 1x HDMI-A female, 1x DC socket

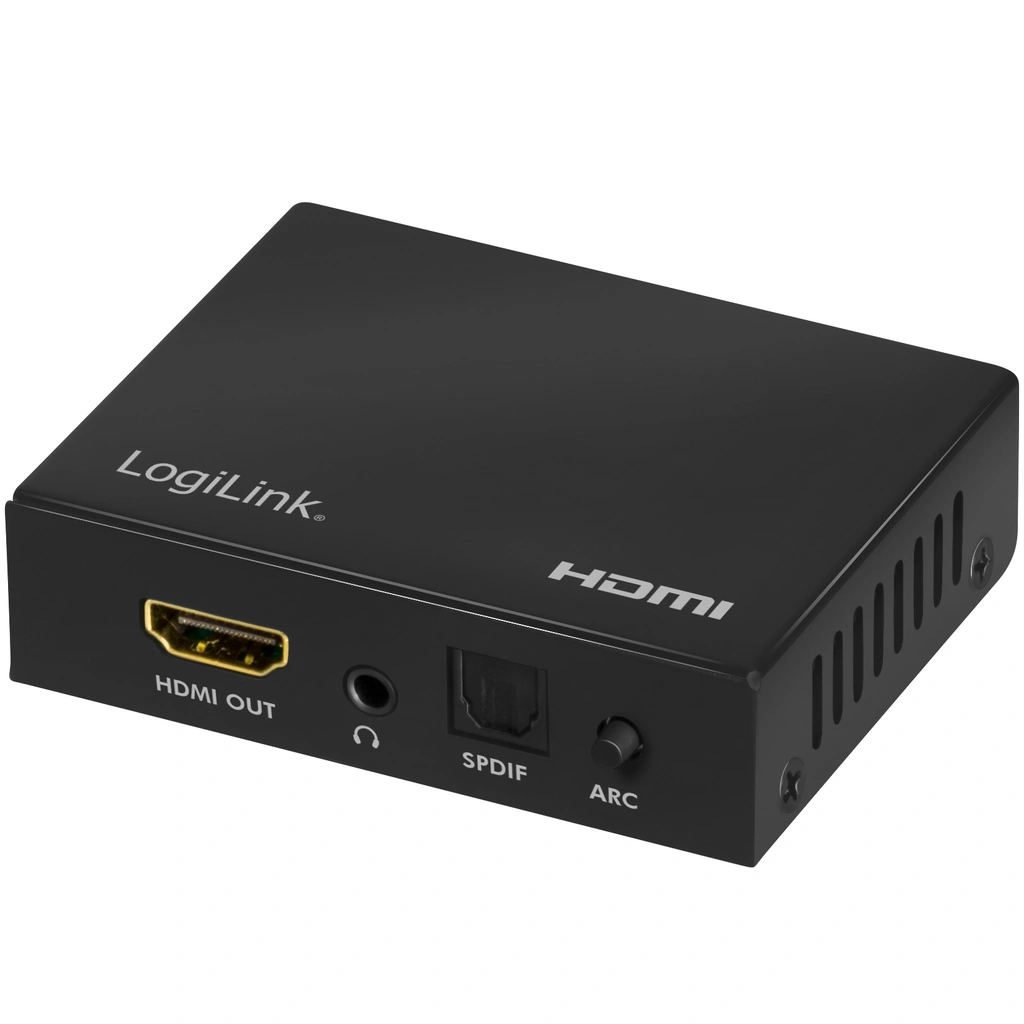

    Outputs: 2x HDMI-A female, 1x SPDIF, 1x 3.5mm phono socket
    HDMI Version: 2.0
    HDCP Version: 2.2
    HDMI ARC: Yes
    HDMI CEC: Yes
    HDMI HDR: Yes
    Video resolution (output): 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz
    Video bandwidth: 6 Gbps/600 MHz
    SPDIF: Yes
    Power consumption: 5W max.

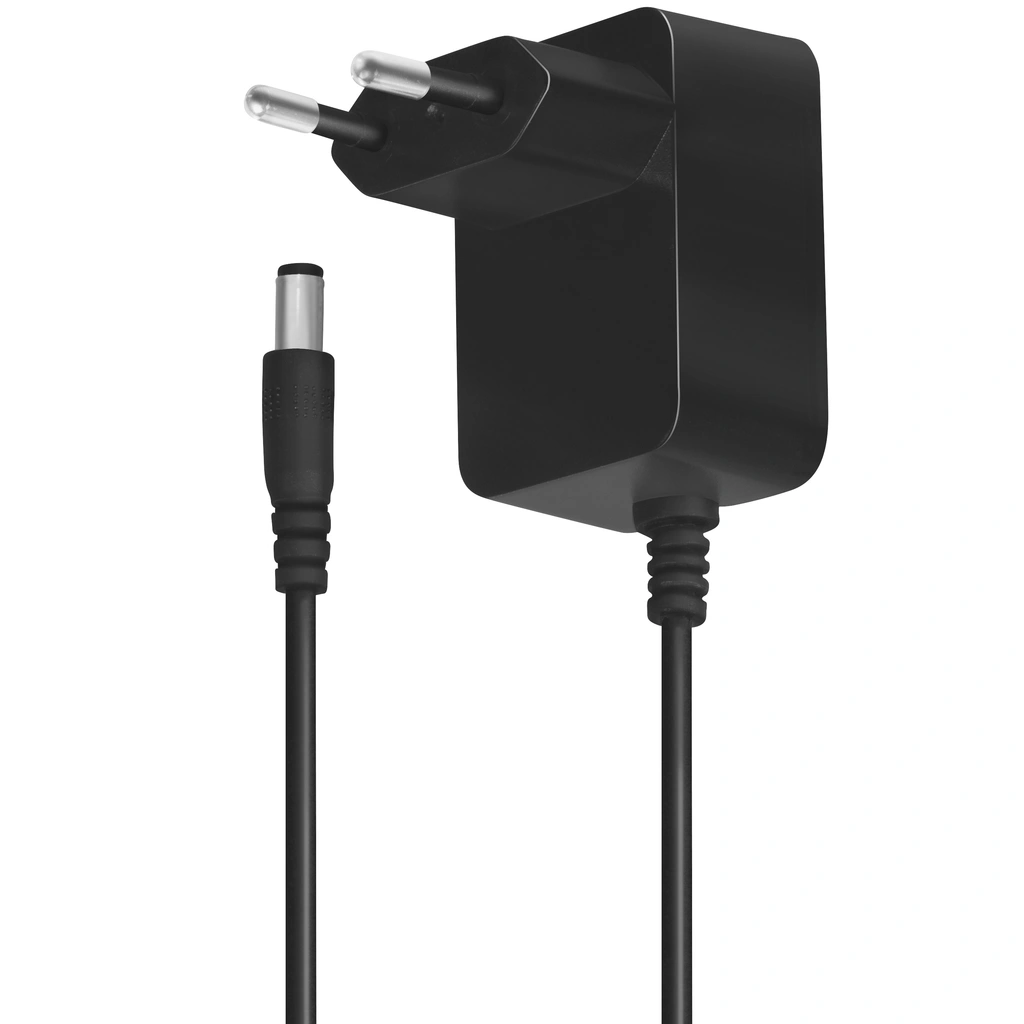

    Power supply: 5V/1 A
    Uncompressed audio: LPCM 7.1
    Compressed audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD
    SPDIF: DTS/Dolby Digital
    Dimensions: 7.8 x 6 x 2 cm

    Product documentation
    CE marking
    Instructions for safe use in Swedish

    HDMI audio extractor, 2CH, 5.1 4K/60Hz

    Adapter that separates the audio from the HDMI signal. This Audio Extractor supports resolutions up to 4K @ 60 Hz and outputs the audio separately via SPDIF or 3.5 mm stereo.
    It also supports ARC; simply connect it to an ARC-compatible TV and route the audio separately to an external audio system, such as a soundbar or amplifier.

    - Converts digital HDMI signals to analogue and digital audio (HDMI, SPDIF and 3.5 mm)
    - Supports 2.0-channel / 5.1-channel / PASS audio switching
    - Supports UHD 4K @ 60 Hz (YUV 4:4:4), Full 3D and 12-bit colour depth
    - Supports HDCP 2.2
    - Supports HDR and CEC
    - Supported audio formats for HDMI output: DTS-HD Master Audio™ / Dolby TrueHD
    - Plug and play, no drivers required

    Specifications
    Inputs: 1x HDMI-A female, 1x DC socket
    Outputs: 2x HDMI-A female, 1x SPDIF, 1x 3.5mm phono socket
    HDMI Version: 2.0
    HDCP Version: 2.2
    HDMI ARC: Yes
    HDMI CEC: Yes
    HDMI HDR: Yes
    Video resolution (output): 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz, 4K@50/60 Hz
    Video bandwidth: 6 Gbps/600 MHz
    SPDIF: Yes
    Power consumption: 5W max.
    Power supply: 5V/1 A
    Uncompressed audio: LPCM 7.1
    Compressed audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD
    SPDIF: DTS/Dolby Digital
    Dimensions: 7.8 x 6 x 2 cm

    Product documentation
    CE marking
    Instructions for safe use in Swedish
